Planeveyor Unit
PVU / PVUH /
PVUFHseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is a unitized product of press molded Planeveyor. It is useful for transporting heavy objects and saving labor for storage by any combination. We have also standardized dust discharge unit using PV50UH as a basic lineup and medium weight unit improved load resistance by attaching reinforcement parts to light weight unit and heavy load for one touch unit using PV 120 UFH (With dust discharge holes).

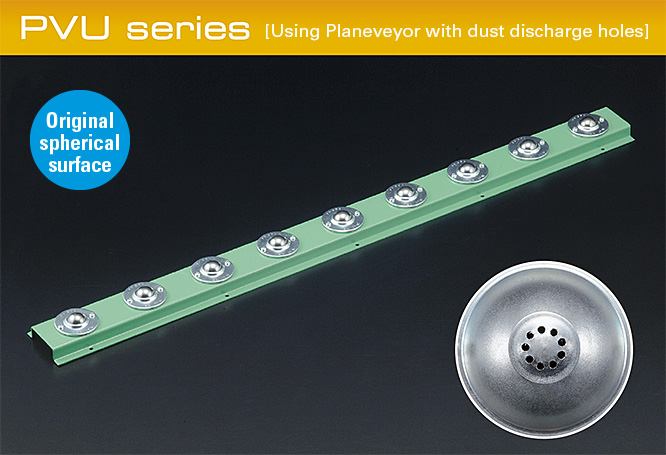

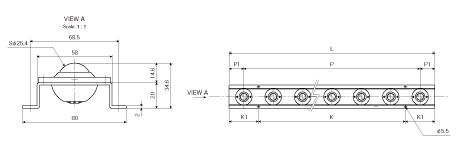

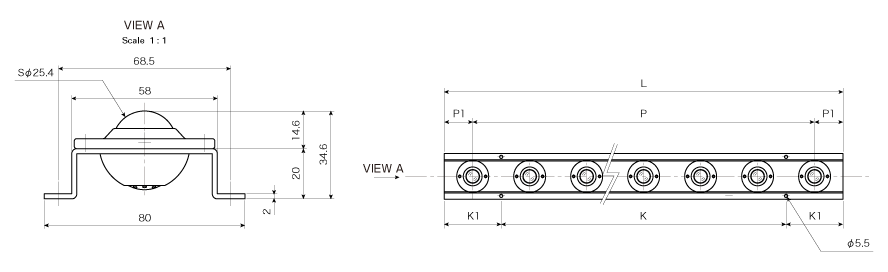

PVU series
[Using Planeveyor with dust discharge holes]
| Model | Length | Mounting Hole | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD | |||
|---|---|---|---|---|---|---|---|---|---|
| L | P | P1 | K | K1 | |||||
| PVU-6 | 600mm | P100×5=500mm | 50mm | P200×2=400mm | 100mm | 1.8kg | PV50UH (6 pieces) | Upward |  |
| PVU-9 | 900mm | P100×8=800mm | 50mm | P200×4=800mm | 50mm | 2.6kg | PV50UH (9 pieces) | Upward | |
| PVU-12 | 1200mm | P100×11=1,100mm | 50mm | P200×5=1,000mm | 100mm | 3.5kg | PV50UH (12 pieces) | Upward | |
| PVU-18 | 1800mm | P100×17=1,700mm | 50mm | P200×8=1,600mm | 100mm | 5.2kg | PV50UH (18 pieces) | Upward | |
PV50UH ... Recommended use load / 490N (50kgf) *Maximum carrying load 600kg

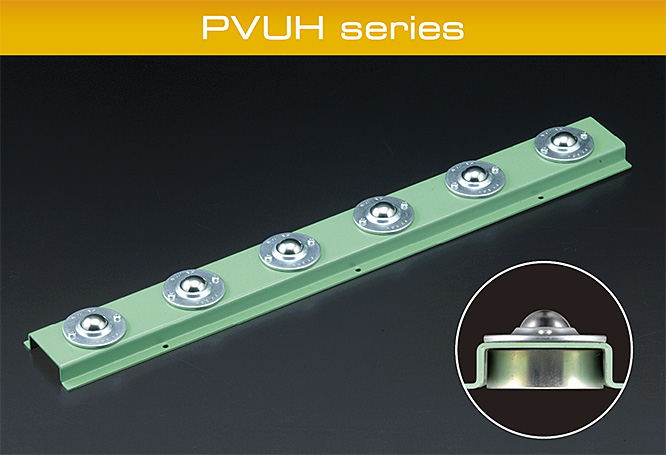

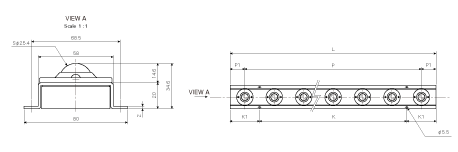

PVUH series

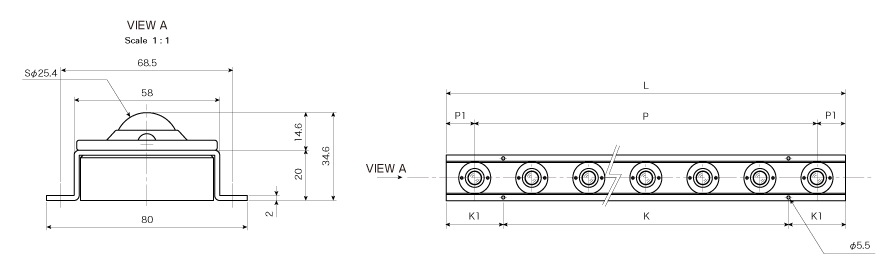

| Model | Length | Mounting Hole | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD | |||
|---|---|---|---|---|---|---|---|---|---|
| L | P | P1 | K | K1 | |||||
| PVUH-6 | 600mm | P100×5=500mm | 50mm | P200×2=400mm | 100mm | 3.3kg | PV30U+ Reinforcement parts (6 pieces) | Upward | |
| PVUH-9 | 900mm | P100×8=800mm | 50mm | P200×4=800mm | 50mm | 4.9kg | PV30U+ Reinforcement parts (9 pieces) | Upward | |
| PVUH-12 | 1200mm | P100×11=1,100mm | 50mm | P200×5=1,000mm | 100mm | 6.5kg | PV30U+ Reinforcement parts (12 pieces) | Upward | |
| PVUH-18 | 1800mm | P100×17=1,700mm | 50mm | P200×8=1,600mm | 100mm | 9.7kg | PV30U+ Reinforcement parts (18 pieces) | Upward | |
PV30U + reinforcement parts ... recommended use load / 490N (50kgf) *Maximum carrying load 700 kg

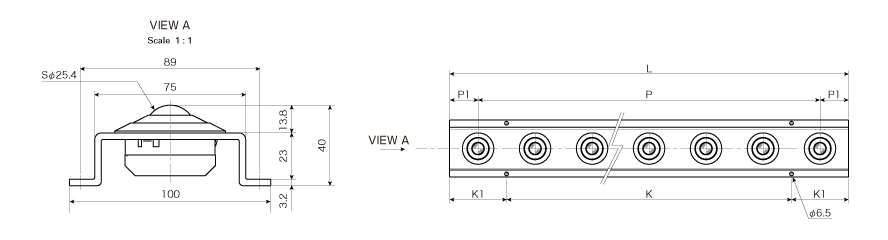

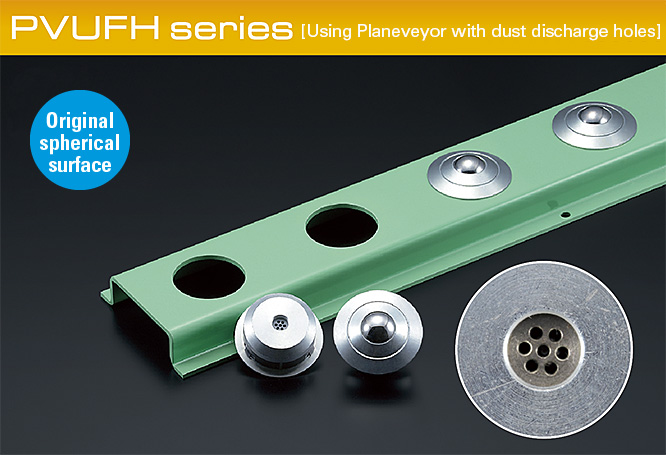

PVUFH series
[Using Planeveyor with dust discharge holes]

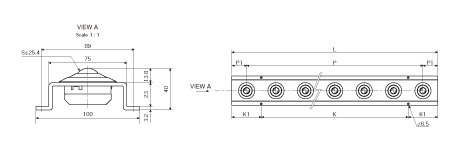

| Model | Length | Mounting Hole | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD | |||
|---|---|---|---|---|---|---|---|---|---|
| L | P | P1 | K | K1 | |||||
| PVUFH-6 | 600mm | P100×5=500mm | 50mm | P200×2=400mm | 100mm | 3.7kg | PV120UFH (6 pieces) | Upward | |
| PVUFH-9 | 900mm | P100×8=800mm | 50mm | P200×4=800mm | 50mm | 5.6kg | PV120UFH (9 pieces) | Upward | |
| PVUFH-12 | 1200mm | P100×11=1,100mm | 50mm | P200×5=1,000mm | 100mm | 7.4kg | PV120UFH (12 pieces) | Upward | |
| PVUFH-18 | 1800mm | P100×17=1,700mm | 50mm | P200×8=1,600mm | 100mm | 11.1kg | PV120UFH (18 pieces) | Upward | |
PV120UFH ... Static rated load / 1,960N (200kgf)·Load rating/1,176N (120kgf) *Maximum carrying load 1,000 kg
Planeveyor Table
PVT / PVT-50H /
PVHLT / PVLTseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is a Planeveyor table used for changing the direction of heavy objects and mold racks. Table shapes and dimensions, ball pitch etc, can be changed.
*For stainless steel, please contact us.

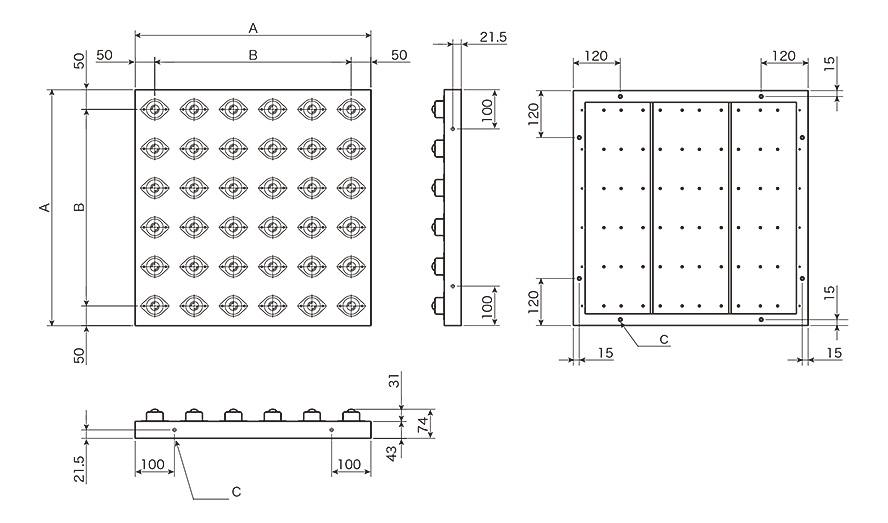

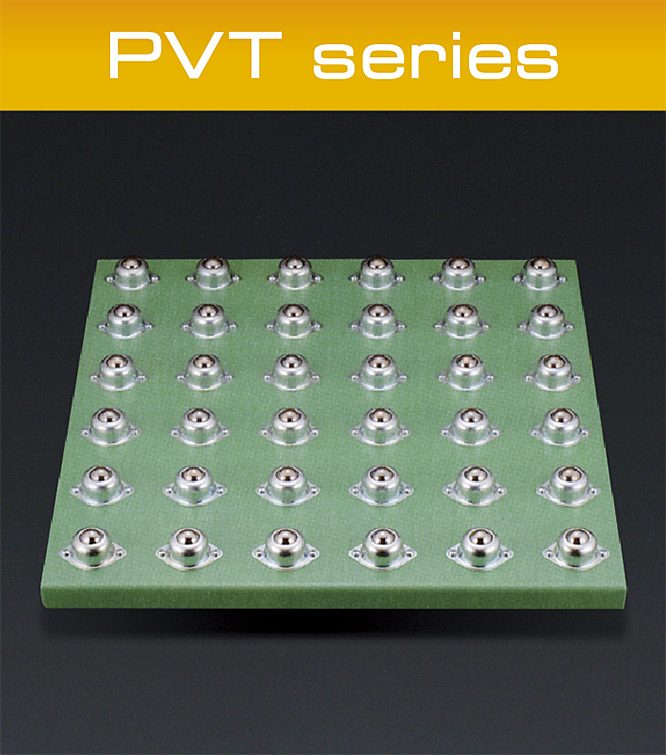

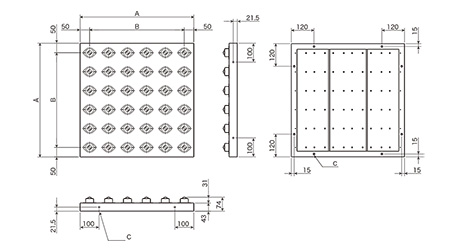

PVT series
| Model | A | B | C | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD |
|---|---|---|---|---|---|---|---|
| PVT-6 | 600mm | P100×5=500mm | 16-Ø9 | 19.8kg | PV30 (36 pieces) | Upward | |
| PVT-9 | 900mm | P100×8=800mm | 16-Ø9 | 43.0kg | PV30 (81 pieces) | Upward | |
PV30 ... Recommended use load / 294N (30kgf) *Maximum carrying load 500kg

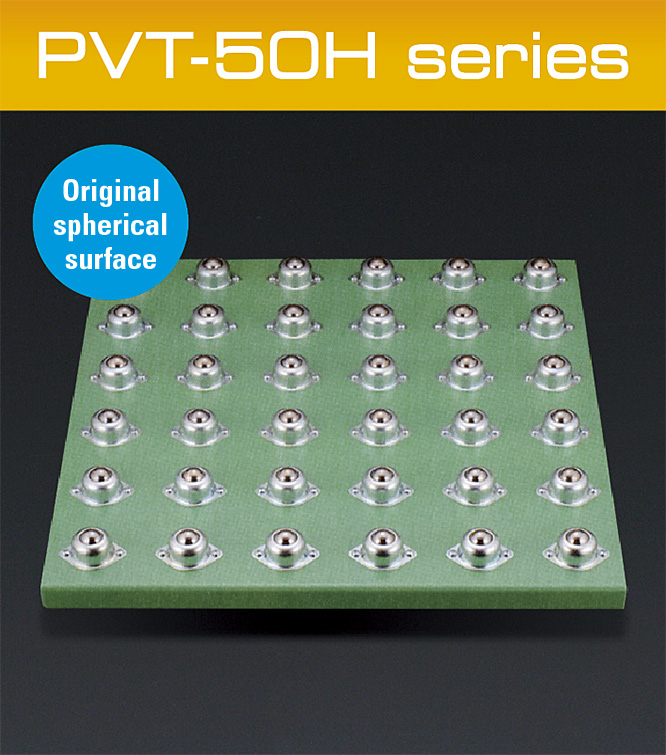

PVT-50H series
[Using Planeveyor with dust discharge holes]
It is the upper model of PVT equipped with Medium load dust discharge type of Planeveyor.

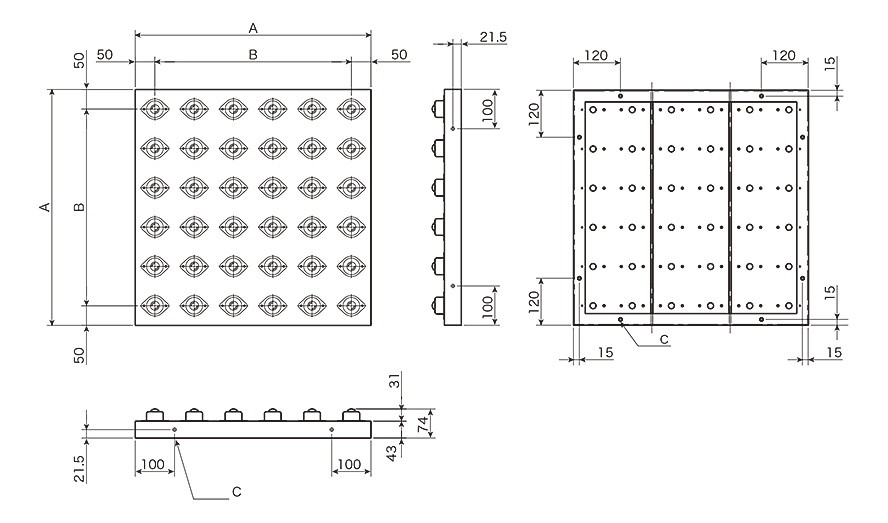

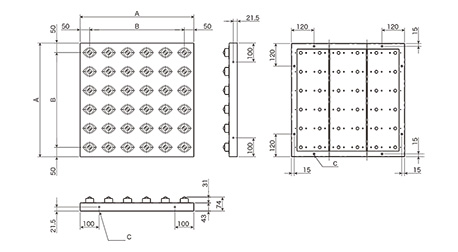

| Model | A | B | C | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD |
|---|---|---|---|---|---|---|---|
| PVT-6-50H | 600mm | P100×5=500mm | 16-Ø9 | 19.8kg | PV50H (36 pieces) | Upward | |
| PVT-9-50H | 900mm | P100×8=800mm | 16-Ø9 | 43.0kg | PV50H (81 pieces) | Upward | |
PV50H ... recommended use load / 490N (50kgf) *Maximum carrying load 600kg

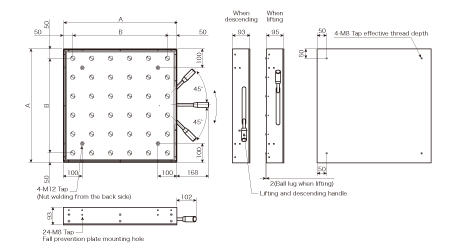

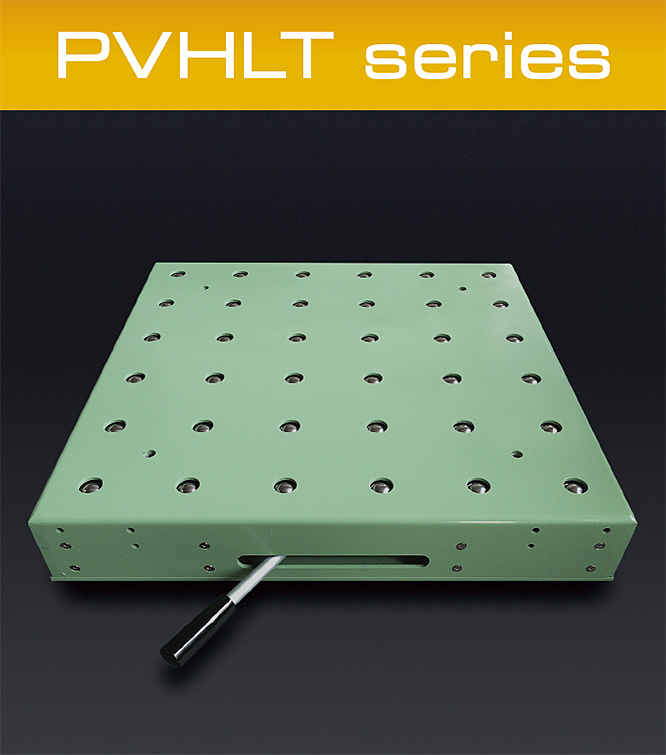

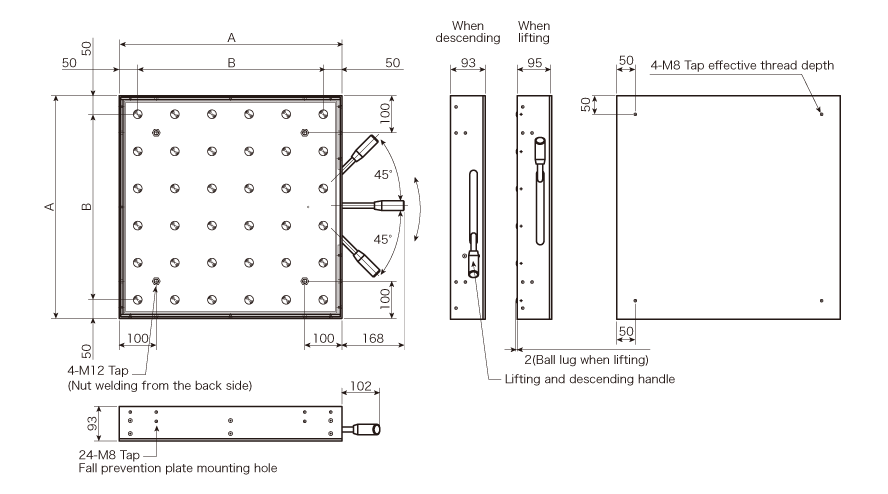

PVHLT series
[Handle driven table lifter]
Planeveyor stored inside while the handle operation moves up and down from the table surface.
| Model | A | B | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD |
|---|---|---|---|---|---|---|
| PVHLT-6 | 600mm | P100×5=500mm | 76.0kg | PV30 (36 pieces) | Upward | |
| PVHLT-9 | 900mm | P100×8=800mm | 120.0kg | PV30 (81 pieces) | Upward | |
PV30 ... Recommended use load / 294N (30kgf) *Maximum carrying load 300kg

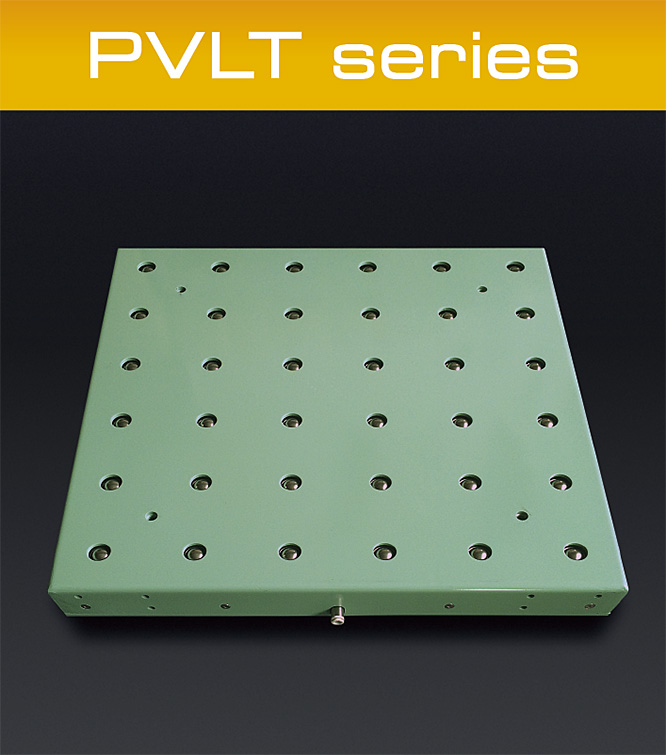

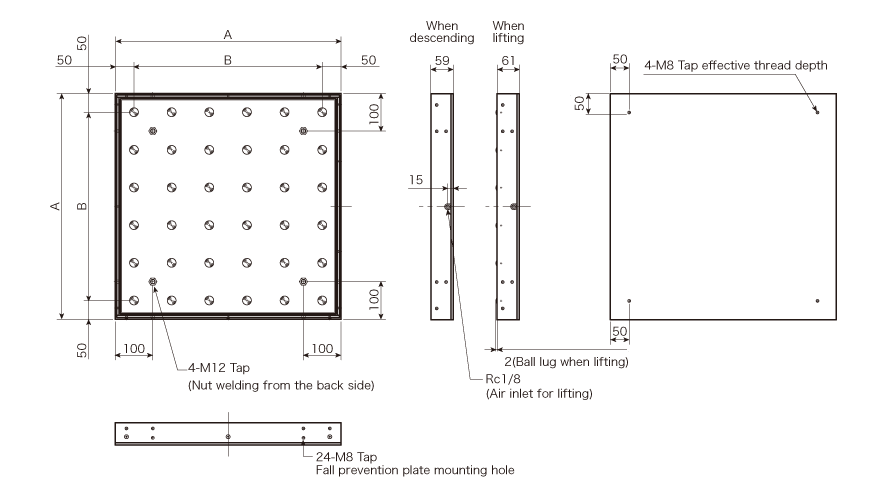

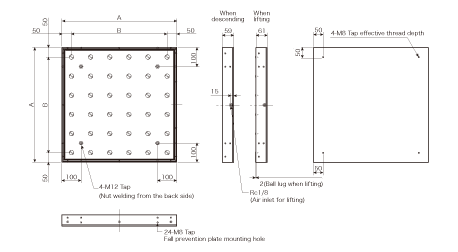

PVLT series
[Compressed Air Actuated Table Lifter]
Planeveyor stored inside while operation of the air changeover switch moves up and down from the table surface
*Recommended use air pressure / 0.5MPa
| Model | A | B | Weight | Quantity of Planeveyor to be used |
Use Direction | CAD |
|---|---|---|---|---|---|---|
| PVLT-6 | 600mm | P100×5=500mm | 54.1kg | PV30 (36 pieces) | Upward | |
| PVLT-9 | 900mm | P100×8=800mm | 81.2kg | PV30 (81 pieces) | Upward | |
PV30 ... Recommended use load / 294N (30kgf) *Maximum carrying load 500kg
