Product Introduction

PV-Aseries

  • STEEL
  • STAINLESS
  • RESIN
  • RoHS
  • PAT
  • PAT.P

The PV-A series is a product that uses compressed air actuated lifter by one piston unit or by connecting it to other devices. It can be used both for upward and downward adjustment according to the requirements.

Single·Concatenated use type

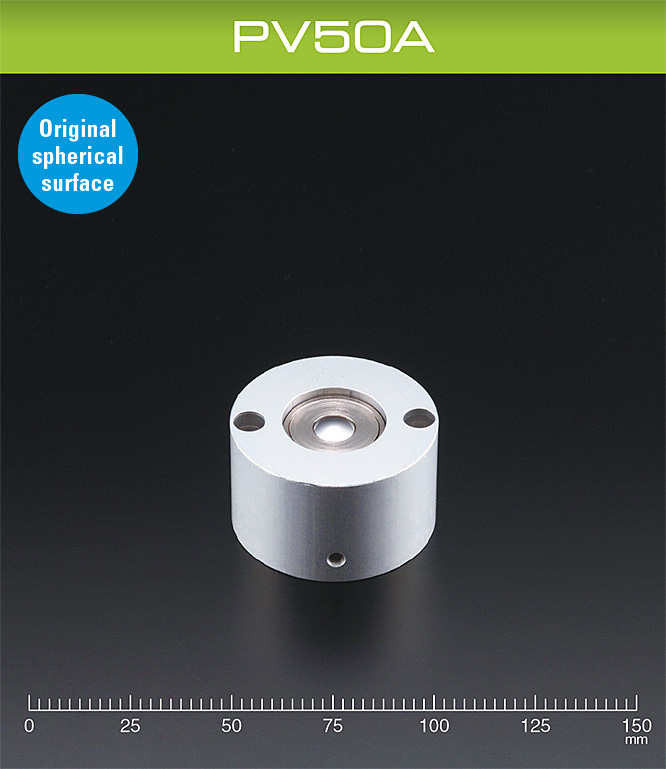

PV50A PV50A

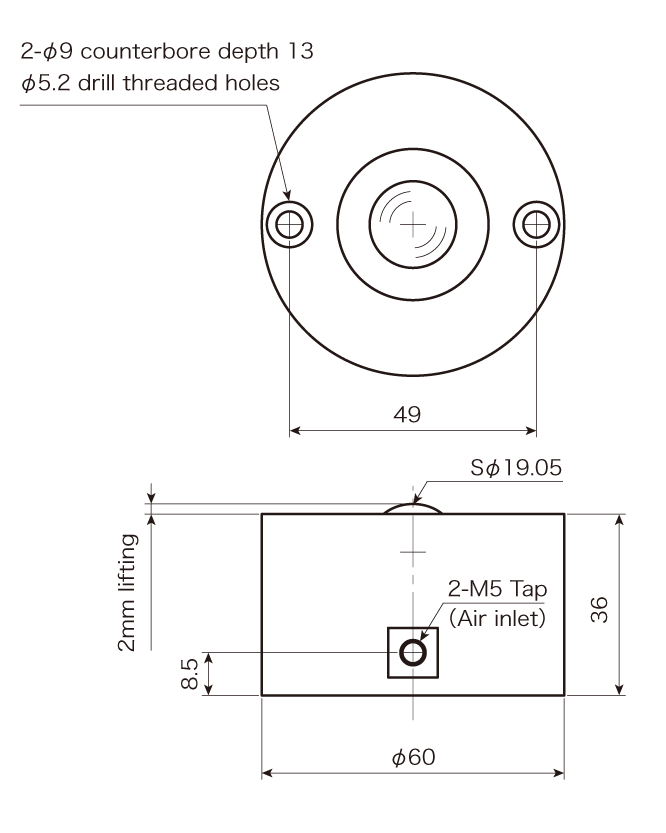

Drawing: PV50A

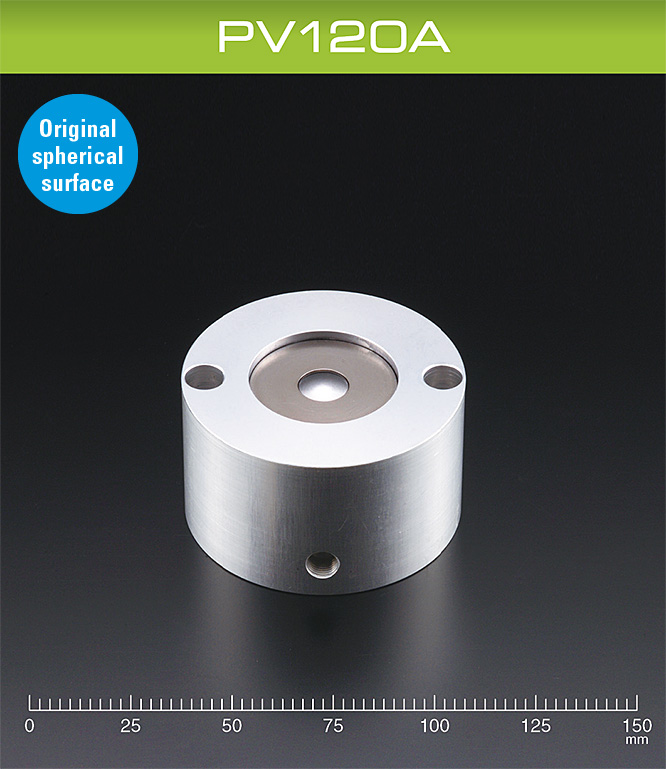

PV120A PV120A

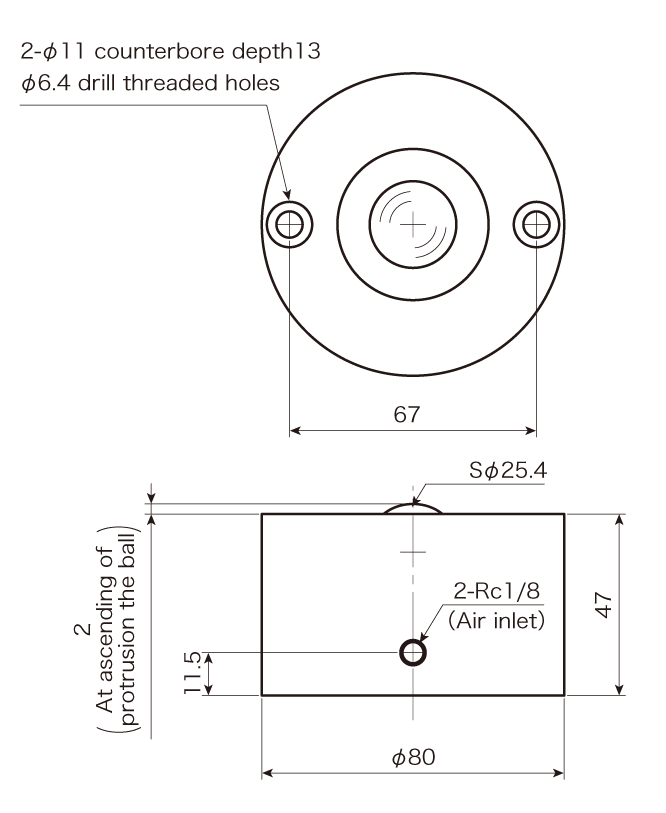

Drawing: PV120A

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Weight Main Ball Support Cup Body Use Direction CAD
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PV50A 1 Piston 608N (62kgf) 764N (78kgf) 921N (94kgf) 375g SUJ2 SCM415 Al Upward·Downward Download CAD
PV120A 1 Piston 1,205N (123kgf) 1,480N (151kgf) 1,754N (179kgf) 912g SUJ2 SCM415 Al Upward·Downward Download CAD

Types and usage of Planeveyor lifters

Planeveyor lifter is a labor-saving device that can move 360 degrees in any direction by lifting the work piece from the table with the built-in air cylinder. There are square grooves and T grooves, and it is possible to select from a wide lineup according to the shape and ability of the groove to be set. There is also a device used for any installation position, and a connection type use.

Planeveyor lifter

Square groove type

〈 Square groove type 〉

Select from abundant lineup according to work size and weight.

T groove type

〈 T groove type 〉

If you are using the press machine, you can use the existing T groove.

Single·Concatenated use type

〈 Single·Concatenated use type 〉

When lowering the work piece you can sit it on the body of the lifter.

Planeveyor lifter

Lifter is installed so that the apex of the ball is low by 1 to 2 mm from the table surface.

Planeveyor lifter

It is possible to move the work piece in any direction when each ball’s parts rises and supports with the lifter by air supply.

Planeveyor lifter

Set air to neutral and place it on the table to work under its own weight.

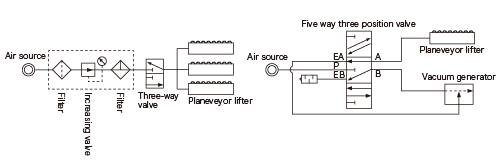

■ Recommended circuit

Use Compressed Air to lift up and to descend the ball so the work piece is lifted up and then decends by its own weight. Therefore, when lowering it is necessary to open the air in the cylinder and please use a three-way valve.

When forcibly lowering the cylinder, please use the vacuum generator as shown in the right figure.

Recommended circuit

PVL-Tseries

  • STEEL
  • STAINLESS
  • RESIN
  • RoHS
  • PAT
  • PAT.P

Using existing T grooves such as a press machine, positioning of metal mold etc. can be done smoothly and lightly. The body is lighter than the conventional type due to adoption of the aluminum body, the burden of work by inserting and pulling out is reduced. Adjusting the height of the body is a method of inserting a spacer in each piston part. (Manufacturer adjustment)

*PVL-T With handle can be manufactured. *Length can be custom made in pitch units.

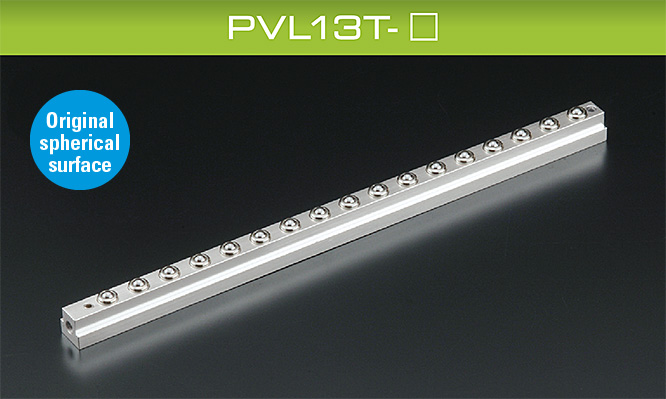

PVL13T-□ PVL13T-□

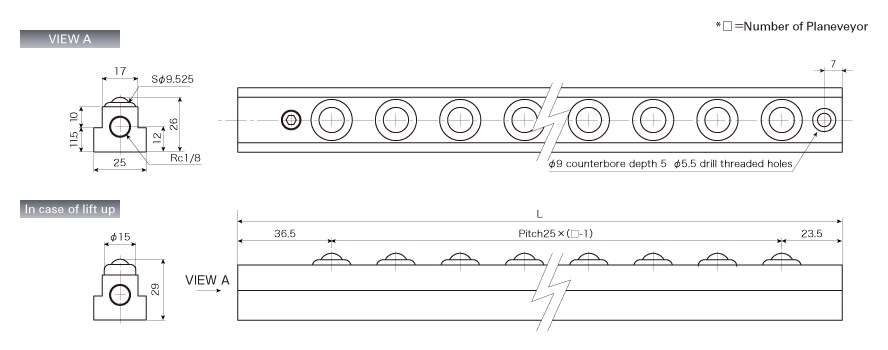

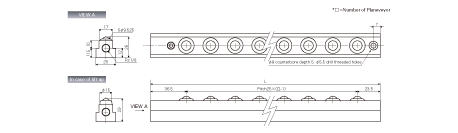

Drawing: PVL13T-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL13T-□ 1 Piston 137N (14kgf) 176N (18kgf) 216N (22kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 60 137 14 176 18 216 22
2 85 274 28 352 36 432 44
3 110 411 42 528 54 648 66
4 135 548 56 704 72 864 88
5 160 685 70 880 90 1,080 110
6 185 822 84 1,056 108 1,296 132
7 210 959 98 1,232 126 1,512 154
8 235 1,096 112 1,408 144 1,728 176
9 260 1,233 126 1,584 162 1,944 198
10 285 1,370 140 1,760 180 2,160 220
11 310 1,507 154 1,936 198 2,376 242
12 335 1,644 168 2,112 216 2,592 264
13 360 1,781 182 2,288 234 2,808 286
14 385 1,918 196 2,464 252 3,024 308
15 410 2,055 210 2,640 270 3,240 330
16 435 2,192 224 2,816 288 3,456 352
17 460 2,329 238 2,992 306 3,672 374
18 485 2,466 252 3,168 324 3,888 396
19 510 2,603 266 3,344 342 4,104 418
20 535 2,740 280 3,520 360 4,320 440
21 560 2,877 294 3,696 378 4,536 462
22 585 3,014 308 3,872 396 4,752 484
23 610 3,151 322 4,048 414 4,968 506
24 635 3,288 336 4,224 432 5,184 528
25 660 3,425 350 4,400 450 5,400 550
26 685 3,562 364 4,576 468 5,616 572
27 710 3,699 378 4,752 486 5,832 594
28 735 3,836 392 4,928 504 6,048 616
29 760 3,973 406 5,104 522 6,264 638
30 785 4,110 420 5,280 540 6,480 660

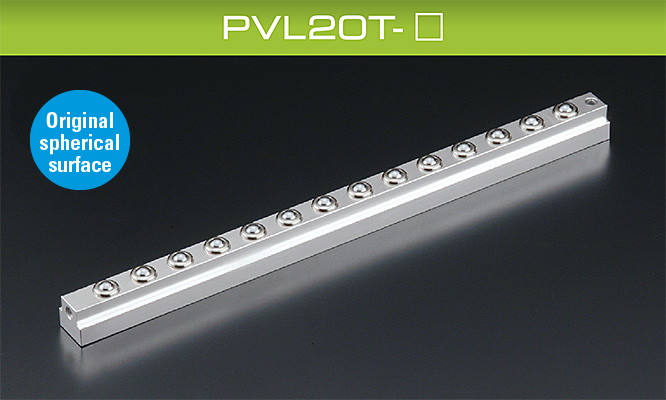

PVL20T-□ PVL20T-□

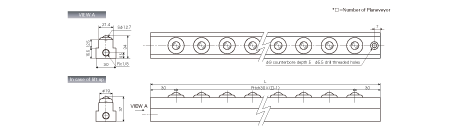

Drawing: PVL20T-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL20T-□ 1 Piston 176N (18kgf) 225N (23kgf) 274N (28kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 60 176 18 225 23 274 28
2 90 352 36 450 46 548 56
3 120 528 54 675 69 822 84
4 150 704 72 900 92 1,096 112
5 180 880 90 1,125 115 1,370 140
6 210 1,056 108 1,350 138 1,644 168
7 240 1,232 126 1,575 161 1,918 196
8 270 1,408 144 1,800 184 2,192 224
9 300 1,584 162 2,025 207 2,466 252
10 330 1,760 180 2,250 230 2,740 280
11 360 1,936 198 2,475 253 3,014 308
12 390 2,112 216 2,700 276 3,288 336
13 420 2,288 234 2,925 299 3,562 364
14 450 2,464 252 3,150 322 3,836 392
15 480 2,640 270 3,375 345 4,110 420
16 510 2,816 288 3,600 368 4,384 448
17 540 2,992 306 3,825 391 4,658 476
18 570 3,168 324 4,050 414 4,932 504
19 600 3,344 342 4,275 437 5,206 532
20 630 3,520 360 4,500 460 5,480 560
21 660 3,696 378 4,725 483 5,754 588
22 690 3,872 396 4,950 506 6,028 616
23 720 4,048 414 5,175 529 6,302 644
24 750 4,224 432 5,400 552 6,576 672
25 780 4,400 450 5,625 575 6,850 700
26 810 4,576 468 5,850 598 7,124 728
27 840 4,752 486 6,075 621 7,398 756
28 870 4,928 504 6,300 644 7,672 784
29 900 5,104 522 6,525 667 7,946 812
30 930 5,280 540 6,750 690 8,220 840

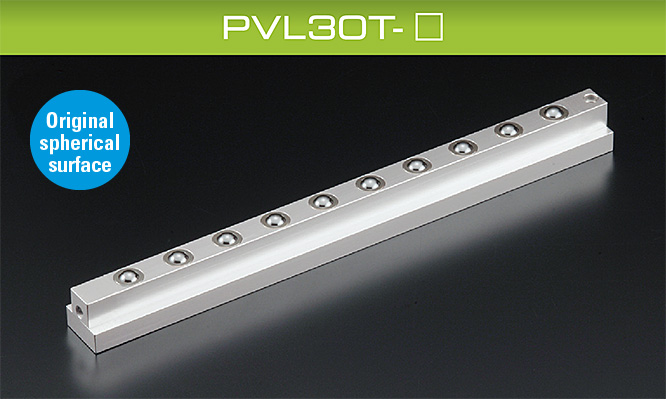

PVL30T-□ PVL30T-□

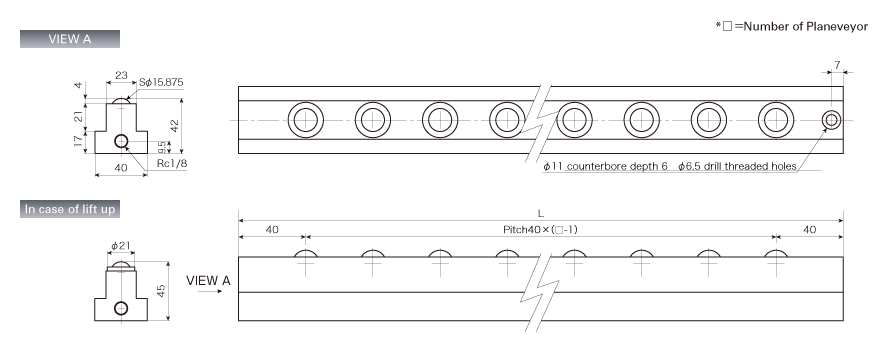

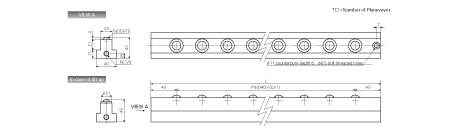

Drawing: PVL30T-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL30T-□ 1 Piston 372N (38kgf) 480N (49kgf) 588N (60kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 80 372 38 480 49 588 60
2 120 744 76 960 98 1,176 120
3 160 1,116 114 1,440 147 1,764 180
4 200 1,488 152 1,920 196 2,352 240
5 240 1,860 190 2,400 245 2,940 300
6 280 2,232 228 2,880 294 3,528 360
7 320 2,604 266 3,360 343 4,116 420
8 360 2,976 304 3,840 392 4,704 480
9 400 3,348 342 4,320 441 5,292 540
10 440 3,720 380 4,800 490 5,880 600
11 480 4,092 418 5,280 539 6,468 660
12 520 4,464 456 5,760 588 7,056 720
13 560 4,836 494 6,240 637 7,644 780
14 600 5,208 532 6,720 686 8,232 840
15 640 5,580 570 7,200 735 8,820 900
16 680 5,952 608 7,680 784 9,408 960
17 720 6,324 646 8,160 833 9,996 1,020
18 760 6,696 684 8,640 882 10,584 1,080
19 800 7,068 722 9,120 931 11,172 1,140
20 840 7,440 760 9,600 980 11,760 1,200
21 880 7,812 798 10,080 1,029 12,348 1,260
22 920 8,184 836 10,560 1,078 12,936 1,320
23 960 8,556 874 11,040 1,127 13,524 1,380
24 1,000 8,928 912 11,520 1,176 14,112 1,440
25 1,040 9,300 950 12,000 1,225 14,700 1,500
26 1,080 9,672 988 12,480 1,274 15,288 1,560
27 1,120 10,044 1,026 12,960 1,323 15,876 1,620
28 1,160 10,416 1,064 13,440 1,372 16,464 1,680
29 1,200 10,788 1,102 13,920 1,421 17,052 1,740
30 1,240 11,160 1,140 14,400 1,470 17,640 1,800

PVL50T-□ PVL50T-□

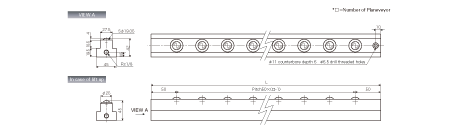

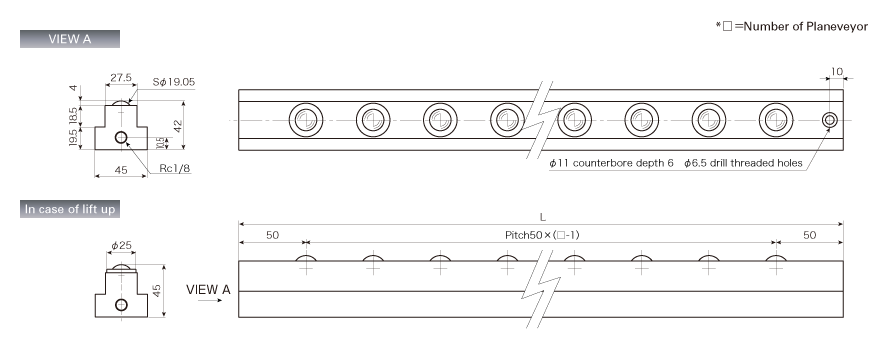

Drawing: PVL50T-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL50T-□ 1 Piston 470N (48kgf) 588N (60kgf) 706N (72kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 100 470 48 588 60 706 72
2 150 940 96 1,176 120 1,412 144
3 200 1,410 144 1,764 180 2,118 216
4 250 1,880 192 2,352 240 2,824 288
5 300 2,350 240 2,940 300 3,530 360
6 350 2,820 288 3,528 360 4,236 432
7 400 3,290 336 4,116 420 4,942 504
8 450 3,760 384 4,704 480 5,648 576
9 500 4,230 432 5,292 540 6,354 648
10 550 4,700 480 5,880 600 7,060 720
11 600 5,170 528 6,468 660 7,766 792
12 650 5,640 576 7,056 720 8,472 864
13 700 6,110 624 7,644 780 9,178 936
14 750 6,580 672 8,232 840 9,884 1,008
15 800 7,050 720 8,820 900 10,590 1,080
16 850 7,520 768 9,408 960 11,296 1,152
17 900 7,990 816 9,996 1,020 12,002 1,224
18 950 8,460 864 10,584 1,080 12,708 1,296
19 1,000 8,930 912 11,172 1,140 13,414 1,368
20 1,050 9,400 960 11,760 1,200 14,120 1,440
21 1,100 9,870 1,008 12,348 1,260 14,826 1,512
22 1,150 10,340 1,056 12,936 1,320 15,532 1,584
23 1,200 10,810 1,104 13,524 1,380 16,238 1,656
24 1,250 11,280 1,152 14,112 1,440 16,944 1,728
25 1,300 11,750 1,200 14,700 1,500 17,650 1,800
26 1,350 12,220 1,248 15,288 1,560 18,356 1,872
27 1,400 12,690 1,296 15,876 1,620 19,062 1,944
28 1,450 13,160 1,344 16,464 1,680 19,768 2,016
29 1,500 13,630 1,392 17,052 1,740 20,474 2,088
30 1,550 14,100 1,440 17,640 1,800 21,180 2,160

PVL-Sseries

  • STEEL
  • STAINLESS
  • RESIN
  • RoHS
  • PAT
  • PAT.P

Compressed Air Actuated Planeveyor lifter is a labor saving device that can move 360 degrees in any direction by lifting the work piece from the table with the built-in air cylinder. If it is a 1 ton conveyed object, it can be moved with a starting frictional resistance of around 20 kgf.

*Length can be custom made in pitch units.

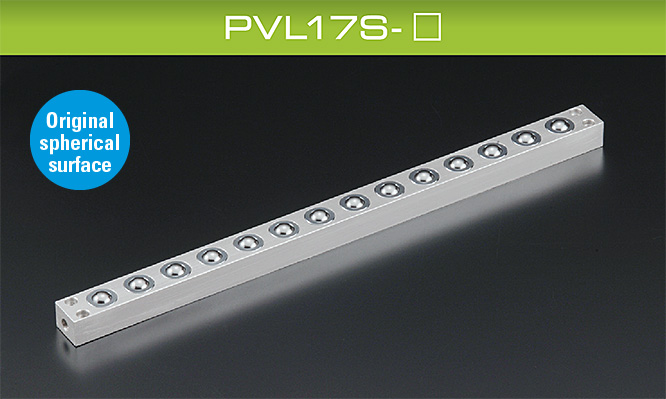

PVL17S-□ PVL17S-□

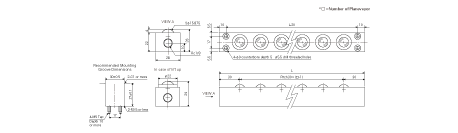

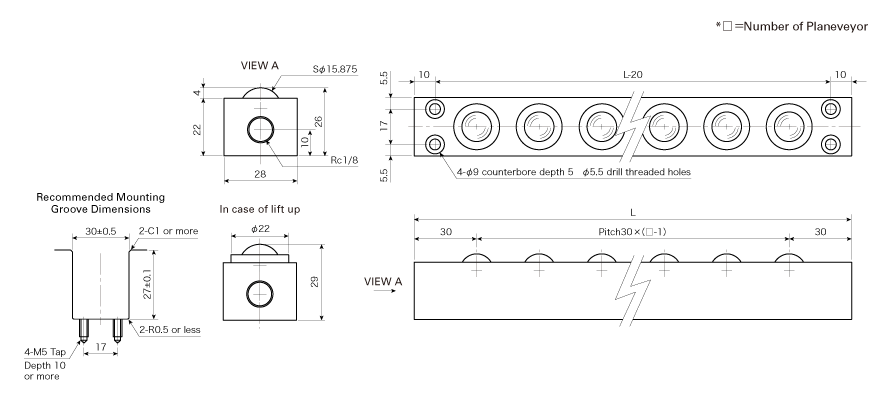

Drawing: PVL17S-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL17S-□ 1 Piston 176N (18kgf) 216N (22kgf) 255N (26kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 60 176 18 216 22 255 26
2 90 352 36 432 44 510 52
3 120 528 54 648 66 765 78
4 150 704 72 864 88 1,020 104
5 180 880 90 1,080 110 1,275 130
6 210 1,056 108 1,296 132 1,530 156
7 240 1,232 126 1,512 154 1,785 182
8 270 1,408 144 1,728 176 2,040 208
9 300 1,584 162 1,944 198 2,295 234
10 330 1,760 180 2,160 220 2,550 260
11 360 1,936 198 2,376 242 2,805 286
12 390 2,112 216 2,592 264 3,060 312
13 420 2,288 234 2,808 286 3,315 338
14 450 2,464 252 3,024 308 3,570 364
15 480 2,640 270 3,240 330 3,825 390
16 510 2,816 288 3,456 352 4,080 416
17 540 2,992 306 3,672 374 4,335 442
18 570 3,168 324 3,888 396 4,590 468
19 600 3,344 342 4,104 418 4,845 494
20 630 3,520 360 4,320 440 5,100 520
21 660 3,696 378 4,536 462 5,355 546
22 690 3,872 396 4,752 484 5,610 572
23 720 4,048 414 4,968 506 5,865 598
24 750 4,224 432 5,184 528 6,120 624
25 780 4,400 450 5,400 550 6,375 650
26 810 4,576 468 5,616 572 6,630 676
27 840 4,752 486 5,832 594 6,885 702
28 870 4,928 504 6,048 616 7,140 728
29 900 5,104 522 6,264 638 7,395 754
30 930 5,280 540 6,480 660 7,650 780

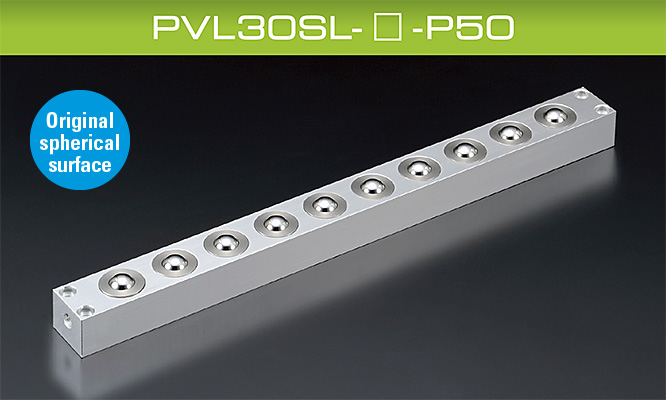

PVL30SL-□-P50 PVL30SL-□-P50

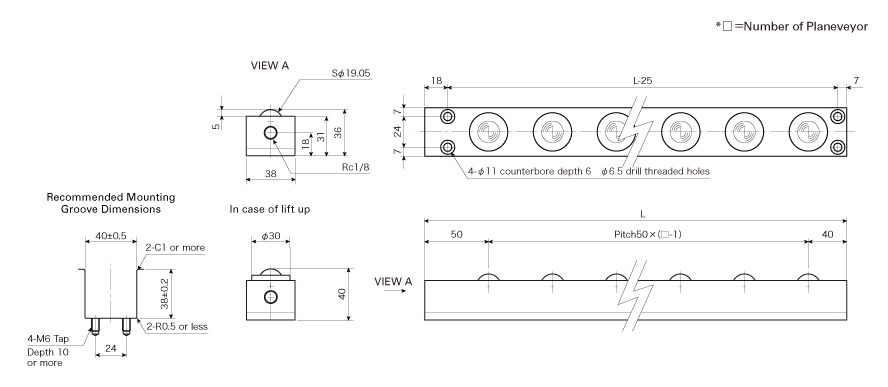

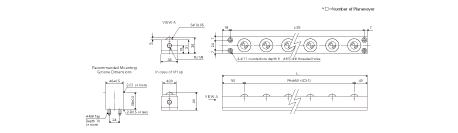

Drawing: PVL30SL-□-P50

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL30SL-□-P50 1 Piston 294N (30kgf) 382N (39kgf) 470N (48kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 90 294 30 382 39 470 48
2 140 588 60 764 78 940 96
3 190 882 90 1,146 117 1,410 144
4 240 1,176 120 1,528 156 1,880 192
5 290 1,470 150 1,910 195 2,350 240
6 340 1,764 180 2,292 234 2,820 288
7 390 2,058 210 2,674 273 3,290 336
8 440 2,352 240 3,056 312 3,760 384
9 490 2,646 270 3,438 351 4,230 432
10 540 2,940 300 3,820 390 4,700 480
11 590 3,234 330 4,202 429 5,170 528
12 640 3,528 360 4,584 468 5,640 576
13 690 3,822 390 4,966 507 6,110 624
14 740 4,116 420 5,348 546 6,580 672
15 790 4,410 450 5,730 585 7,050 720
16 840 4,704 480 6,112 624 7,520 768
17 890 4,998 510 6,494 663 7,990 816
18 940 5,292 540 6,876 702 8,460 864
19 990 5,586 570 7,258 741 8,930 912
20 1,040 5,880 600 7,640 780 9,400 960
21 1,090 6,174 630 8,022 819 9,870 1,008
22 1,140 6,468 660 8,404 858 10,340 1,056
23 1,190 6,762 690 8,786 897 10,810 1,104
24 1,240 7,056 720 9,168 936 11,280 1,152
25 1,290 7,350 750 9,550 975 11,750 1,200
26 1,340 7,644 780 9,932 1,014 12,220 1,248
27 1,390 7,938 810 10,314 1,053 12,690 1,296
28 1,440 8,232 840 10,696 1,092 13,160 1,344
29 1,490 8,526 870 11,078 1,131 13,630 1,392
30 1,540 8,820 900 11,460 1,170 14,100 1,440

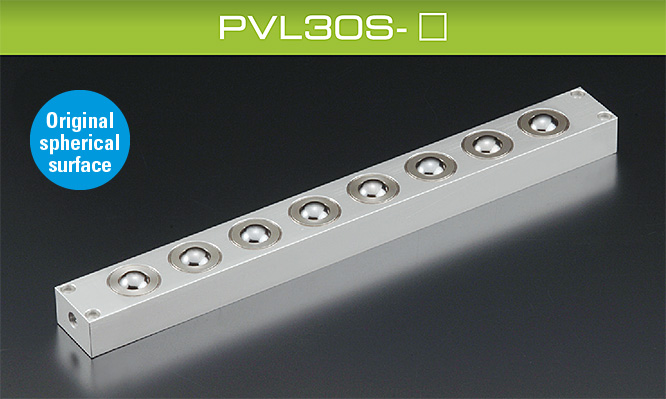

PVL30S-□ PVL30S-□

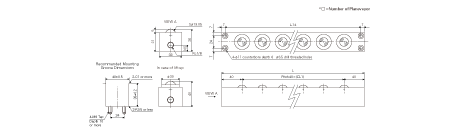

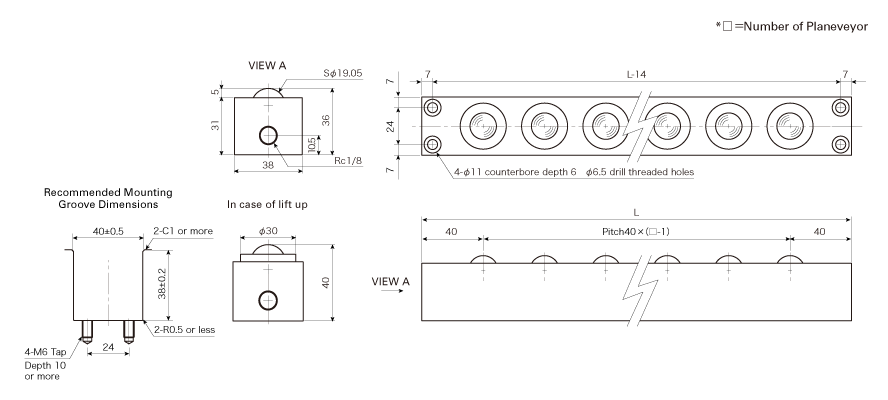

Drawing: PVL30S-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL30S-□ 1 Piston 294N (30kgf) 382N (39kgf) 470N (48kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 80 294 30 382 39 470 48
2 120 588 60 764 78 940 96
3 160 882 90 1,146 117 1,410 144
4 200 1,176 120 1,528 156 1,880 192
5 240 1,470 150 1,910 195 2,350 240
6 280 1,764 180 2,292 234 2,820 288
7 320 2,058 210 2,674 273 3,290 336
8 360 2,352 240 3,056 312 3,760 384
9 400 2,646 270 3,438 351 4,230 432
10 440 2,940 300 3,820 390 4,700 480
11 480 3,234 330 4,202 429 5,170 528
12 520 3,528 360 4,584 468 5,640 576
13 560 3,822 390 4,966 507 6,110 624
14 600 4,116 420 5,348 546 6,580 672
15 640 4,410 450 5,730 585 7,050 720
16 680 4,704 480 6,112 624 7,520 768
17 720 4,998 510 6,494 663 7,990 816
18 760 5,292 540 6,876 702 8,460 864
19 800 5,586 570 7,258 741 8,930 912
20 840 5,880 600 7,640 780 9,400 960
21 880 6,174 630 8,022 819 9,870 1,008
22 920 6,468 660 8,404 858 10,340 1,056
23 960 6,762 690 8,786 897 10,810 1,104
24 1,000 7,056 720 9,168 936 11,280 1,152
25 1,040 7,350 750 9,550 975 11,750 1,200
26 1,080 7,644 780 9,932 1,014 12,220 1,248
27 1,120 7,938 810 10,314 1,053 12,690 1,296
28 1,160 8,232 840 10,696 1,092 13,160 1,344
29 1,200 8,526 870 11,078 1,131 13,630 1,392
30 1,240 8,820 900 11,460 1,170 14,100 1,440

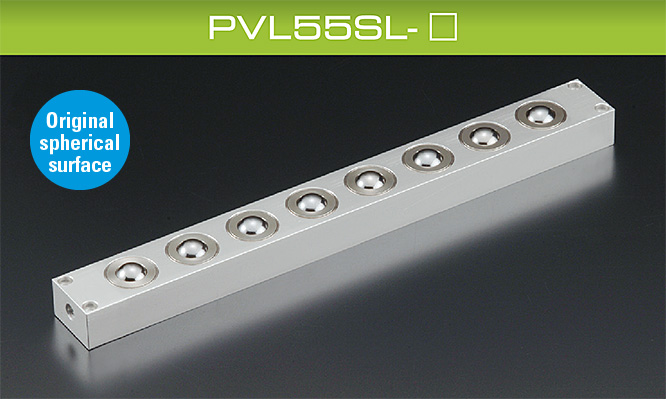

PVL55SL-□ PVL55SL-□

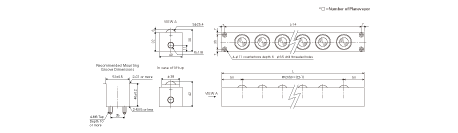

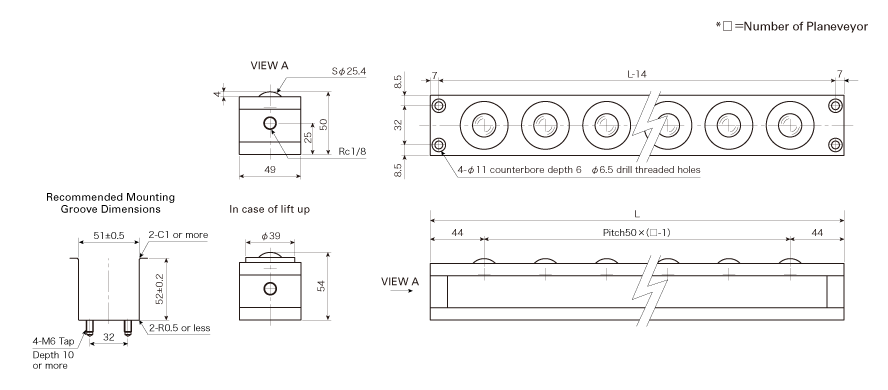

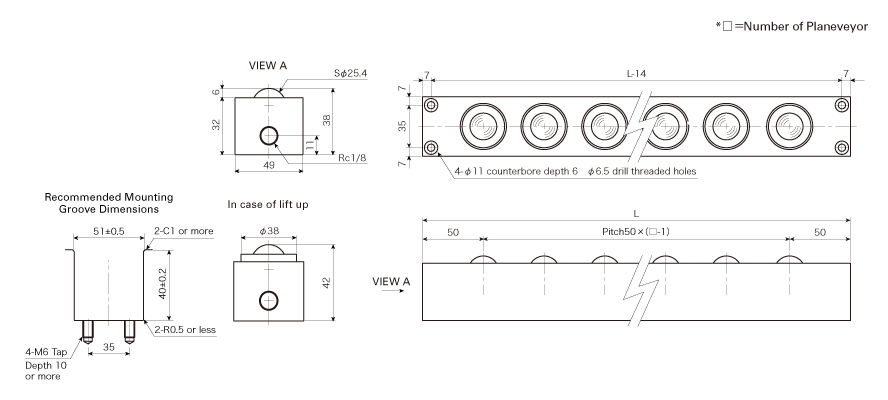

Drawing: PVL55SL-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL55SL-□ 1 Piston 549N (56kgf) 676N (69kgf) 804N (82kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 100 549 56 676 69 804 82
2 150 1,098 112 1,352 138 1,608 164
3 200 1,647 168 2,028 207 2,412 246
4 250 2,196 224 2,704 276 3,216 328
5 300 2,745 280 3,380 345 4,020 410
6 350 3,294 336 4,056 414 4,824 492
7 400 3,843 392 4,732 483 5,628 574
8 450 4,392 448 5,408 552 6,432 656
9 500 4,941 504 6,084 621 7,236 738
10 550 5,490 560 6,760 690 8,040 820
11 600 6,039 616 7,436 759 8,844 902
12 650 6,588 672 8,112 828 9,648 984
13 700 7,137 728 8,788 897 10,452 1,066
14 750 7,686 784 9,464 966 11,256 1,148
15 800 8,235 840 10,140 1,035 12,060 1,230
16 850 8,784 896 10,816 1,104 12,864 1,312
17 900 9,333 952 11,492 1,173 13,668 1,394
18 950 9,882 1,008 12,168 1,242 14,472 1,476
19 1,000 10,431 1,064 12,844 1,311 15,276 1,558
20 1,050 10,980 1,120 13,520 1,380 16,080 1,640
21 1,100 11,529 1,176 14,196 1,449 16,884 1,722
22 1,150 12,078 1,232 14,872 1,518 17,688 1,804
23 1,200 12,627 1,288 15,548 1,587 18,492 1,886
24 1,250 13,176 1,344 16,224 1,656 19,296 1,968
25 1,300 13,725 1,400 16,900 1,725 20,100 2,050
26 1,350 14,274 1,456 17,576 1,794 20,904 2,132
27 1,400 14,823 1,512 18,252 1,863 21,708 2,214
28 1,450 15,372 1,568 18,928 1,932 22,512 2,296
29 1,500 15,921 1,624 19,604 2,001 23,316 2,378
30 1,550 16,470 1,680 20,280 2,070 24,120 2,460

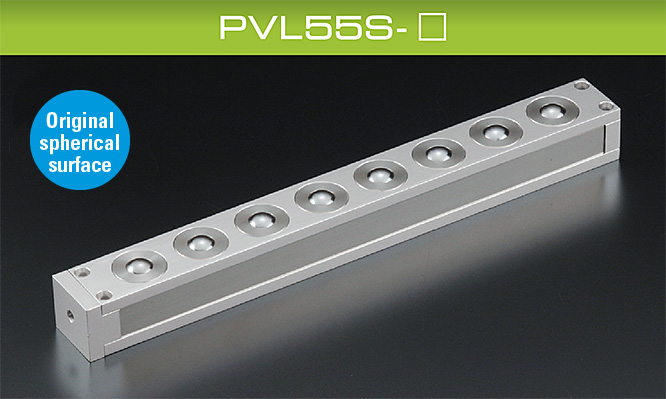

PVL55S-□ PVL55S-□

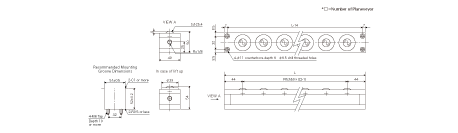

Drawing: PVL55S-□

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL55S-□ 1 Piston 549N (56kgf) 676N (69kgf) 804N (82kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 88 549 56 676 69 804 82
2 138 1,098 112 1,352 138 1,608 164
3 188 1,647 168 2,028 207 2,412 246
4 238 2,196 224 2,704 276 3,216 328
5 288 2,745 280 3,380 345 4,020 410
6 338 3,294 336 4,056 414 4,824 492
7 388 3,843 392 4,732 483 5,628 574
8 438 4,392 448 5,408 552 6,432 656
9 488 4,941 504 6,084 621 7,236 738
10 538 5,490 560 6,760 690 8,040 820
11 588 6,039 616 7,436 759 8,844 902
12 638 6,588 672 8,112 828 9,648 984
13 688 7,137 728 8,788 897 10,452 1,066
14 738 7,686 784 9,464 966 11,256 1,148
15 788 8,235 840 10,140 1,035 12,060 1,230
16 838 8,784 896 10,816 1,104 12,864 1,312
17 888 9,333 952 11,492 1,173 13,668 1,394
18 938 9,882 1,008 12,168 1,242 14,472 1,476
19 988 10,431 1,064 12,844 1,311 15,276 1,558
20 1,038 10,980 1,120 13,520 1,380 16,080 1,640
21 1,088 11,529 1,176 14,196 1,449 16,884 1,722
22 1,138 12,078 1,232 14,872 1,518 17,688 1,804
23 1,188 12,627 1,288 15,548 1,587 18,492 1,886
24 1,238 13,176 1,344 16,224 1,656 19,296 1,968
25 1,288 13,725 1,400 16,900 1,725 20,100 2,050
26 1,338 14,274 1,456 17,576 1,794 20,904 2,132
27 1,388 14,823 1,512 18,252 1,863 21,708 2,214
28 1,438 15,372 1,568 18,928 1,932 22,512 2,296
29 1,488 15,921 1,624 19,604 2,001 23,316 2,378
30 1,538 16,470 1,680 20,280 2,070 24,120 2,460

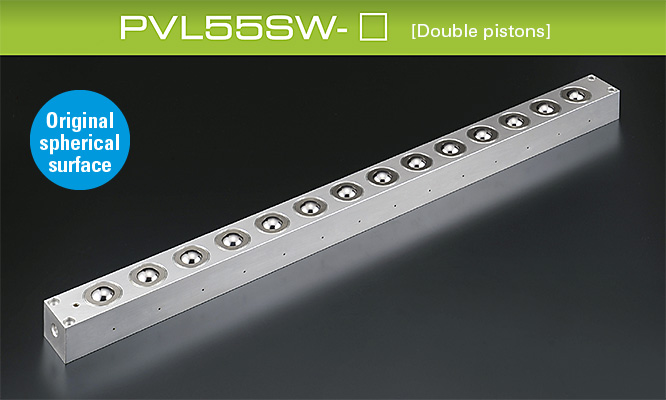

PVL55SW-□ PVL55SW-□

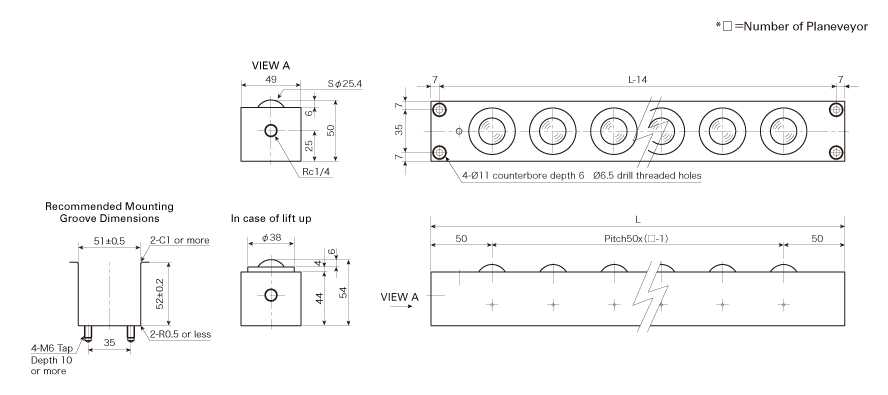

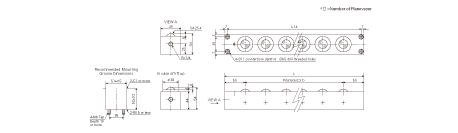

Drawing: PVL55SW-□

[Double pistons]

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL55SW-□ 1 Piston 1,098N (112kgf) 1,352N (138kgf) 1,608N (164kgf) SUJ2 SCM415 Al Upward·Downward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 100 1,098 112 1,352 138 1,608 164
2 150 2,196 224 2,704 276 3,216 328
3 200 3,294 336 4,056 414 4,824 492
4 250 4,392 448 5,408 552 6,432 656
5 300 5,490 560 6,760 690 8,040 820
6 350 6,588 672 8,112 828 9,648 984
7 400 7,686 784 9,464 966 11,256 1,148
8 450 8,784 896 10,816 1,104 12,864 1,312
9 500 9,882 1,008 12,168 1,242 14,472 1,476
10 550 10,980 1,120 13,520 1,380 16,080 1,640
11 600 12,078 1,232 14,872 1,518 17,688 1,804
12 650 13,176 1,344 16,224 1,656 19,296 1,968
13 700 14,274 1,456 17,576 1,794 20,904 2,132
14 750 15,372 1,568 18,928 1,932 22,512 2,296
15 800 16,470 1,680 20,280 2,070 24,120 2,460
16 850 17,568 1,792 21,632 2,208 25,728 2,624
17 900 18,666 1,904 22,984 2,346 27,336 2,788
18 950 19,764 2,016 24,336 2,484 28,944 2,952
19 1,000 20,862 2,128 25,688 2,622 30,552 3,116
20 1,050 21,960 2,240 27,040 2,760 32,160 3,280
21 1,100 23,058 2,352 28,392 2,898 33,768 3,444
22 1,150 24,156 2,464 29,744 3,036 35,376 3,608
23 1,200 25,254 2,576 31,096 3,174 36,984 3,772
24 1,250 26,352 2,688 32,448 3,312 38,592 3,936
25 1,300 27,450 2,800 33,800 3,450 40,200 4,100
26 1,350 28,548 2,912 35,152 3,588 41,808 4,264
27 1,400 29,646 3,024 36,504 3,726 43,416 4,428
28 1,450 30,744 3,136 37,856 3,864 45,024 4,592
29 1,500 31,842 3,248 39,208 4,002 46,632 4,756
30 1,550 32,940 3,360 40,560 4,140 48,240 4,920

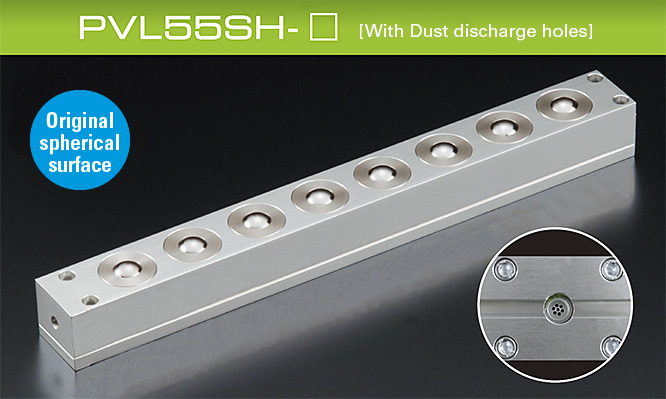

PVL55SH-□ PVL55SH-□

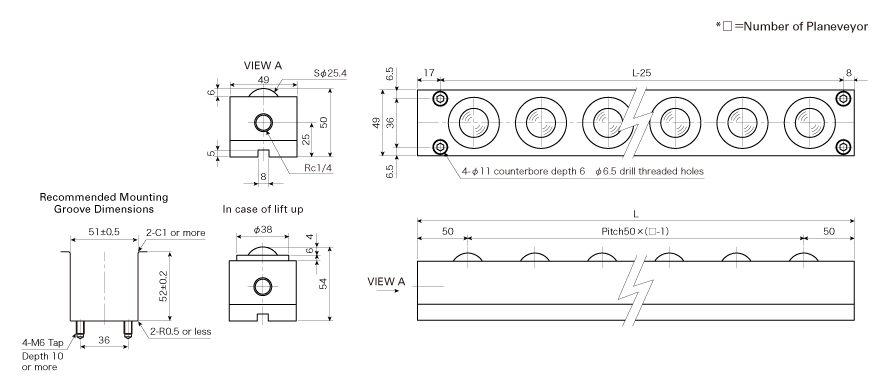

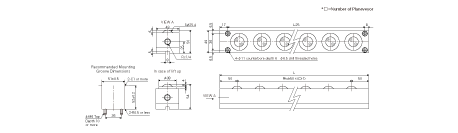

Drawing: PVL55SH-□

[With Dust discharge holes]

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVL55SH-□ 1 Piston 549N (56kgf) 676N (69kgf) 804N (82kgf) SUJ2 SCM415 Al Upward
Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
1 100 549 56 676 69 804 82
2 150 1,098 112 1,352 138 1,608 164
3 200 1,647 168 2,028 207 2,412 246
4 250 2,196 224 2,704 276 3,216 328
5 300 2,745 280 3,380 345 4,020 410
6 350 3,294 336 4,056 414 4,824 492
7 400 3,843 392 4,732 483 5,628 574
8 450 4,392 448 5,408 552 6,432 656
9 500 4,941 504 6,084 621 7,236 738
10 550 5,490 560 6,760 690 8,040 820
11 600 6,039 616 7,436 759 8,844 902
12 650 6,588 672 8,112 828 9,648 984
13 700 7,137 728 8,788 897 10,452 1,066
14 750 7,686 784 9,464 966 11,256 1,148
15 800 8,235 840 10,140 1,035 12,060 1,230
16 850 8,784 896 10,816 1,104 12,864 1,312
17 900 9,333 952 11,492 1,173 13,668 1,394
18 950 9,882 1,008 12,168 1,242 14,472 1,476
19 1,000 10,431 1,064 12,844 1,311 15,276 1,558
20 1,050 10,980 1,120 13,520 1,380 16,080 1,640
21 650 11,529 1,176 14,196 1,449 16,884 1,722
22 700 12,078 1,232 14,872 1,518 17,688 1,804
23 750 12,627 1,288 15,548 1,587 18,492 1,886
24 800 13,176 1,344 16,224 1,656 19,296 1,968
25 850 13,725 1,400 16,900 1,725 20,100 2,050
26 900 14,274 1,456 17,576 1,794 20,904 2,132
27 950 14,823 1,512 18,252 1,863 21,708 2,214
28 1,000 15,372 1,568 18,928 1,932 22,512 2,296
29 1,050 15,921 1,624 19,604 2,001 23,316 2,378
30 1,050 16,470 1,680 20,280 2,070 24,120 2,460

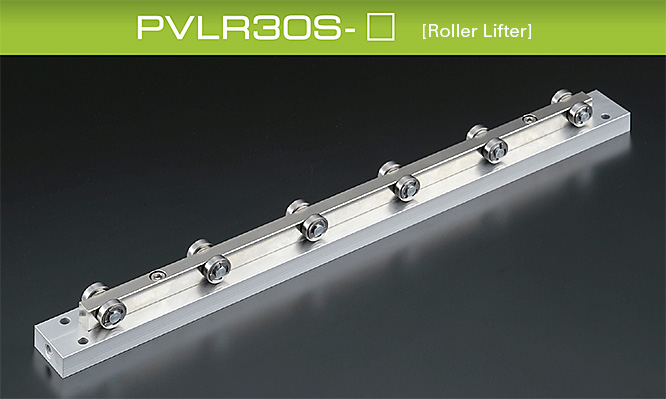

PVLR30S-□ PVLR30S-□

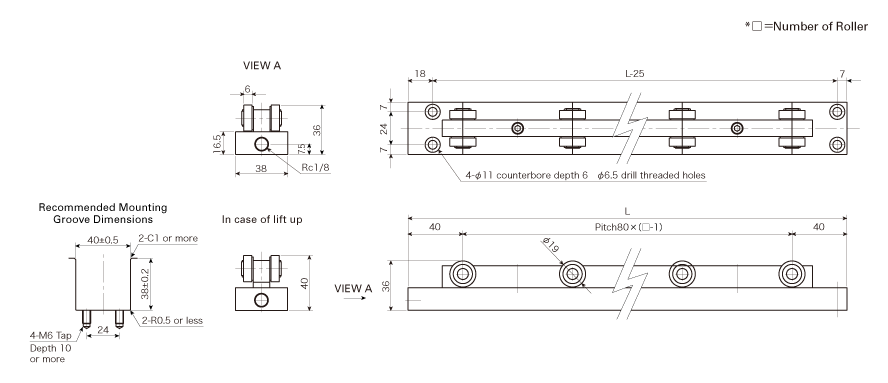

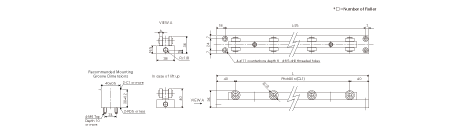

Drawing: PVLR30S-□

[Roller Lifter]

Model Upward Force
*Recommended Pressure Range 0.4MPa - 0.6MPa
(Withstand Pressure 0.9MPa)		 Main Ball Support Cup Body Use Direction
Supplied
Air Pressure		 0.4MPa 0.5MPa 0.6MPa
PVLR30S-□ 1 Piston 284N (29kgf) 363N (37kgf) 441N (45kgf) SUJ2 SCM415 Al Upward·Downward

*Number of pistons = (number of rollers × 2) -1

Number
of balls		 L(mm) Loading (push-up) ability per ball (actual measurement value) N(kgf) Download CAD
Applied air pressure MPa(kgf/cm2)
0.4 (4) 0.5 (5) 0.6 (6)
2 160 568 58 726 74 882 90
3 240 852 87 1,089 111 1,323 135
4 320 1,136 116 1,452 148 1,764 180
5 400 1,420 145 1,815 185 2,205 225
6 480 1,704 174 2,178 222 2,646 270
7 560 1,988 203 2,541 259 3,087 315
8 640 2,272 232 2,904 296 3,528 360
9 720 2,556 261 3,267 333 3,969 405
10 800 2,840 290 3,630 370 4,410 450
11 880 3,124 319 3,993 407 4,851 495
12 960 3,408 348 4,356 444 5,292 540
13 1,040 3,692 377 4,719 481 5,733 585
14 1,120 3,976 406 5,082 518 6,174 630
15 1,200 4,260 435 5,445 555 6,615 675

PVDLseries

  • STEEL
  • STAINLESS
  • RESIN
  • RoHS
  • PAT
  • PAT.P

It is a hydraulically actuated Planeveyor lifter, that combines the powerful pushing up capability which is an advantage of hydraulic actuated and the free positioning performance of Planeveyor.

We jointly developed ATEC Co., Ltd. and Showa Seiki Co., Ltd., we have combined the ball unit by using to the original spherical surface and the elevating unit based on outstanding hydraulic technology, It is effective for positioning in the free direction which was impossible with the hydraulic roller unit.

▶Push-up capability is insufficient for air driven lifter. ▶It is impossible to move the work piece in the left and right direction with a hydraulic roller.

If you are having any kind of troubles with the problems above, please don't hesitate to contact us.

PVDL50-□ PVDL50-□

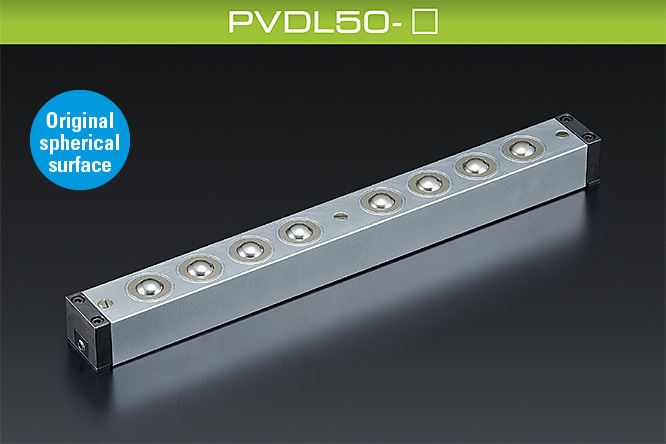

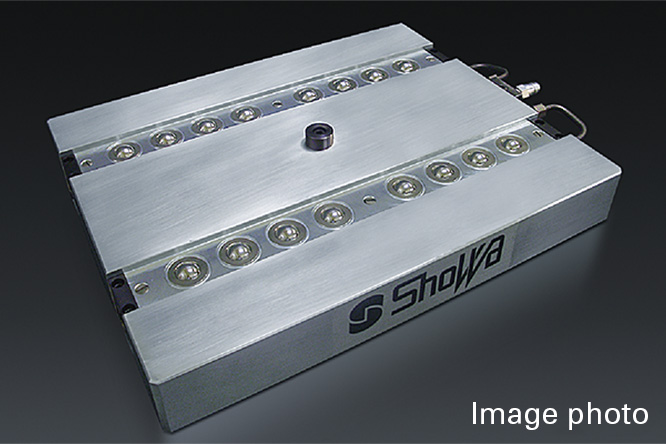

Image photo

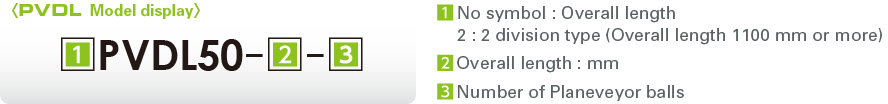

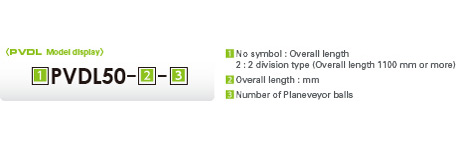

Model display

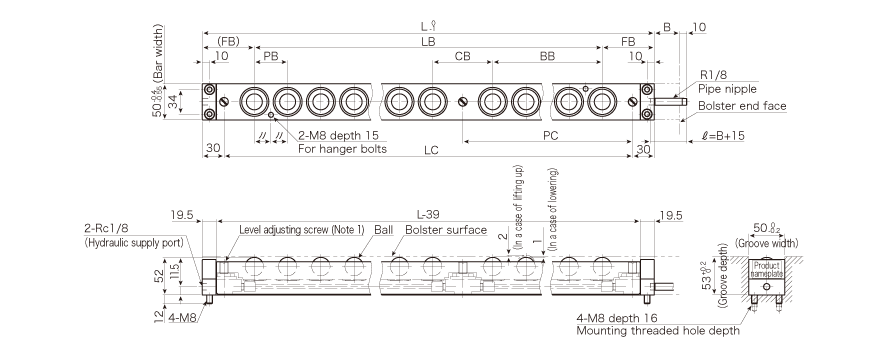

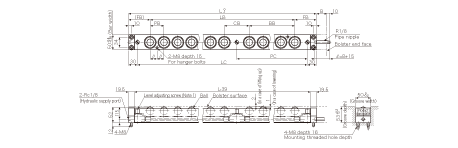

Drawing: PVDL50-□

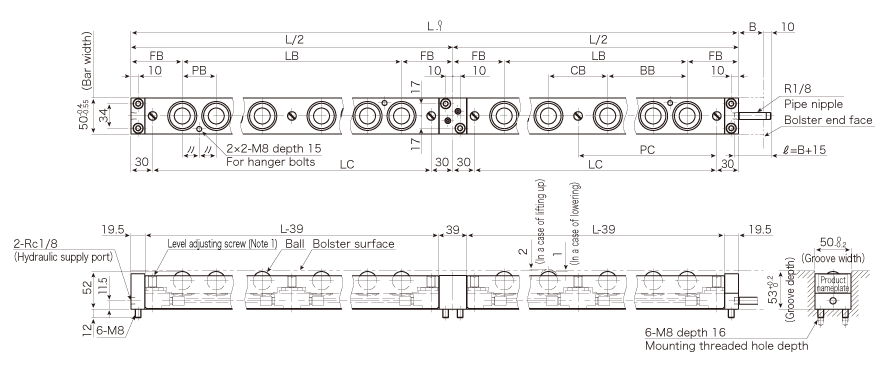

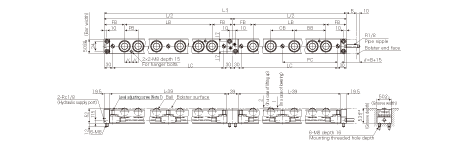

Drawing: 2PVDL50-□

Withstand
Pressure		 Upward Force
*Maximum Pressure 24.5MPa		 Lift Stroke Oil
Quantity		 Temperature
Range		 Working Oil
Supplied
Oil Pressure		 18.1MPa 24.5MPa
36.8MPa One cylinder 3,800N (390kgf) 5,100N (520kgf) 3mm 0.7ml 0 - 60°C General hydraulic fluid (ISO VG32)
Type full
length
L		 Number of Balls Number of Cylinders Number of Screws
for Horizontal Adjustment		 Ball pitch
①
PB		 Ball pitch
②
CB		 FB PC Download CAD
PVDL50-300-4 300 4 2 2 52 - 72 -
PVDL50-400-6 400 6 2 2 51 - 72.5 -
PVDL50-500-8 500 8 3 3 46 82 71 220
PVDL50-600-10 600 10 3 3 47 82 71 270
PVDL50-700-12 700 12 3 3 47.6 82 71 320
PVDL50-800-12 800 12 4 4 54 84 73 246.6
PVDL50-900-15 900 15 4 4 49.5 82 71 280
PVDL50-1000-18 1000 18 4 4 46 83 72 313.3
2PVDL50-1100-16 1100 16 6 6 54 83 71.5 245
2PVDL50-1200-20 1200 20 6 6 47 82 71 270
2PVDL50-1300-20 1300 20 6 6 53 83 71.5 295
2PVDL50-1400-24 1400 24 6 6 47.6 82 71 320
2PVDL50-1500-24 1500 24 8 8 49 83 71.5 230
