Planeveyor <With dust discharge holes> pressed / cutting products
PV-Hseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
Conventional ball transfer is structurally more prone to get dusts inside, so once it goes in, it is difficult to drop out, so it showed weaknesses during the operations in harsh environment such as underwater (sea water, muddy water etc.), oil, dust etc.
Planeveyor dust discharge type uses the advantages of the original spherical surface (PAT.P) to drill holes (slits) in the receiving part of the small balls and the ball cover part to discharge dust and water that got inside.
Atec's dust discharge device type of Plaveveyor recognize the drastic solution method of discharging dust
by taking advantage of the original spherical surface (PAT.P).
We succeeded in fundamentally solving the problem of rotation failure due to dust by distinguishing it from conventional countermeasures against dust intrusion (rubber seal etc.).
Ever since Planeveyor adopts the original spherical surface (PAT.P) of the new mechanism completely different from the ball transfer so far, it does not receive the load on the small ball receiving surface directly under the main ball. With this structure, it is possible to drill a lot of dust discharging holes.
It discharges dust and water etc, that got inside and operates normally even under severe environment, maintaining smooth rotation.
Conventional (Atec's old type)
It is disadvantage to use at severe environment such as underwater / oil / dust, Because dust gets easily inside.
The Original spherical surface (PAT.P)
It discharges dust that enters inside and it demonstrates its power even in harsh operating environments.
Dust discharge type, uses the advantages of the original spherical surface (PAT.P) to drill holes in the receiving part.
Example of harsh usage situation corresponding
to dust discharge type
- Transportation of an iron plate with mill scale
- Transportation of a Mold (sand mold)
- Stone processing site (sandblasting)
- Powder Molding Machine (Mold Movement)
- Work pieces conveyance in washing machine
- Work pieces conveyance in cutting process
- Ceramic powder molding machine (molding of glass fiber)

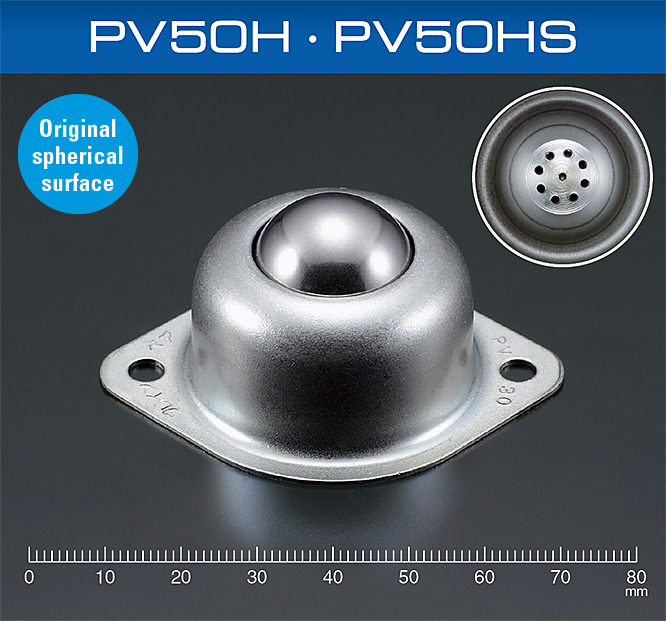

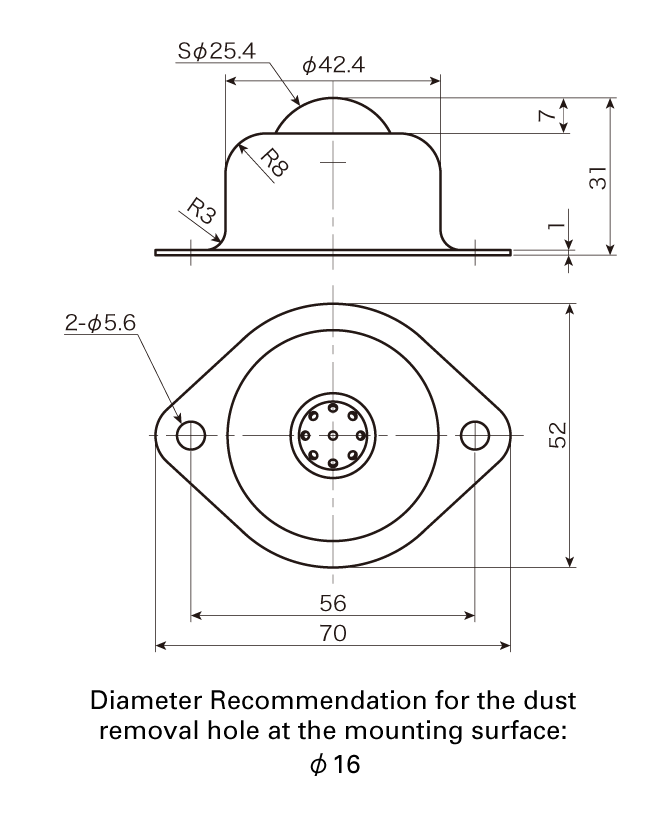

PV50H·PV50HS

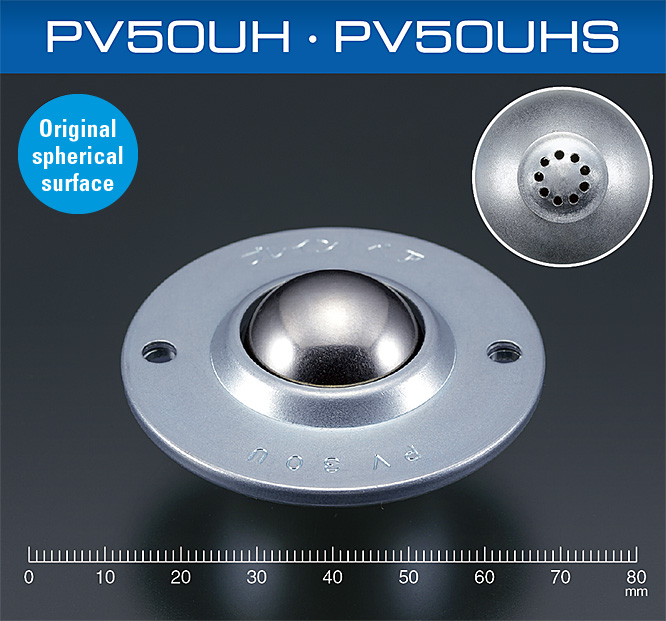

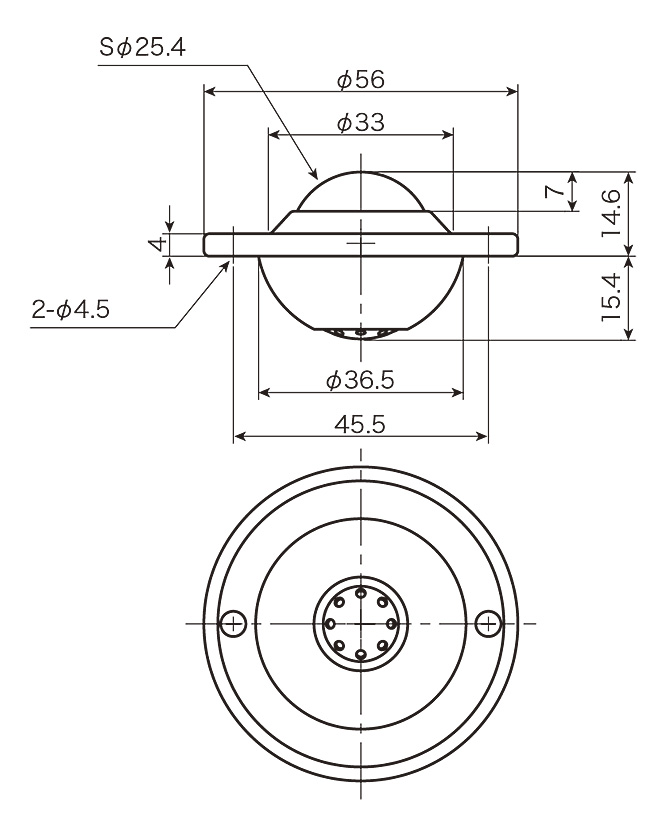

PV50UH·PV50UHS
| Model | Recommended Load Capacity | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | 3D |
|---|---|---|---|---|---|---|---|---|
| PV50H | 490N (50kgf) | 142g | Upward | STEEL | STEEL | SUS304 | SS |  |
| PV50HS | 490N (50kgf) | 134g | Upward | SUS440C | SUS440C | SUS304 | SUS304 | |
| PV50UH | 490N (50kgf) | 136g | Upward | STEEL | STEEL | SUS304 | SS | |
| PV50UHS | 490N (50kgf) | 132g | Upward | SUS440C | SUS440C | SUS304 | SUS304 | |

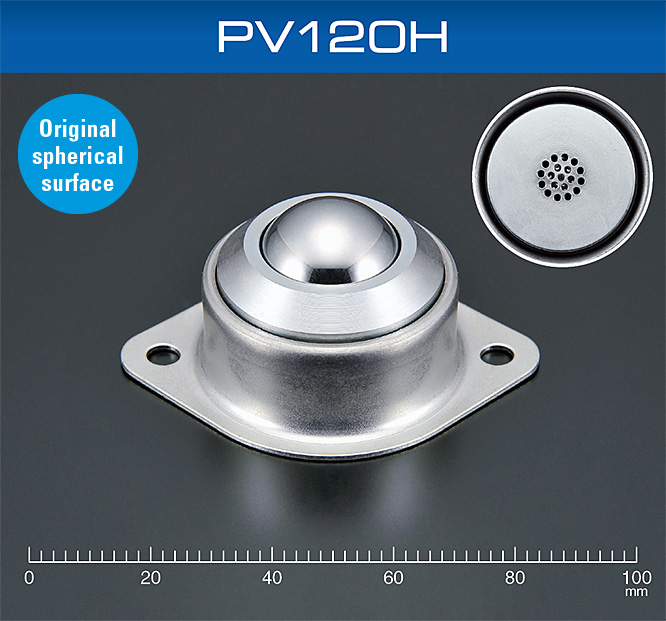

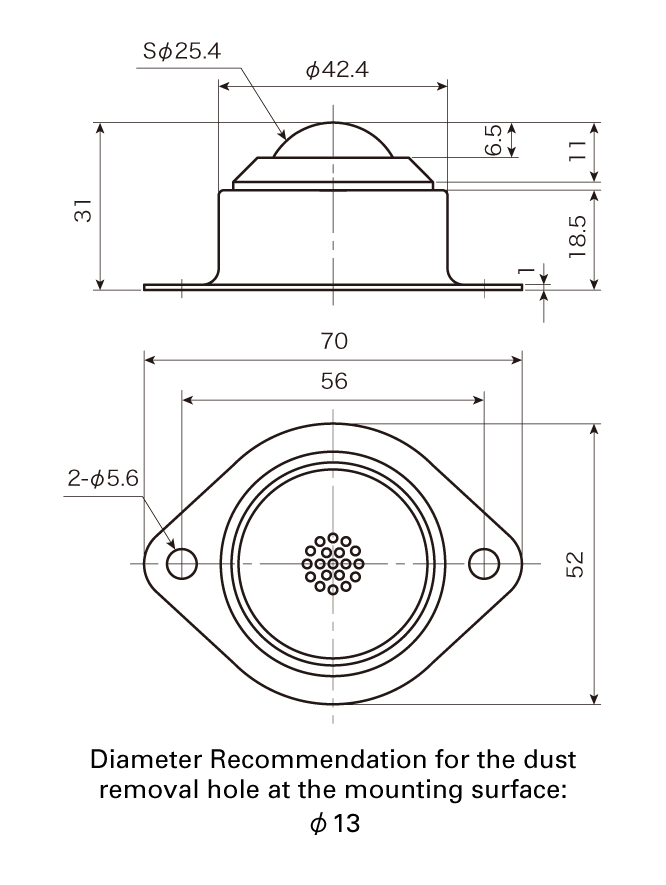

PV120H

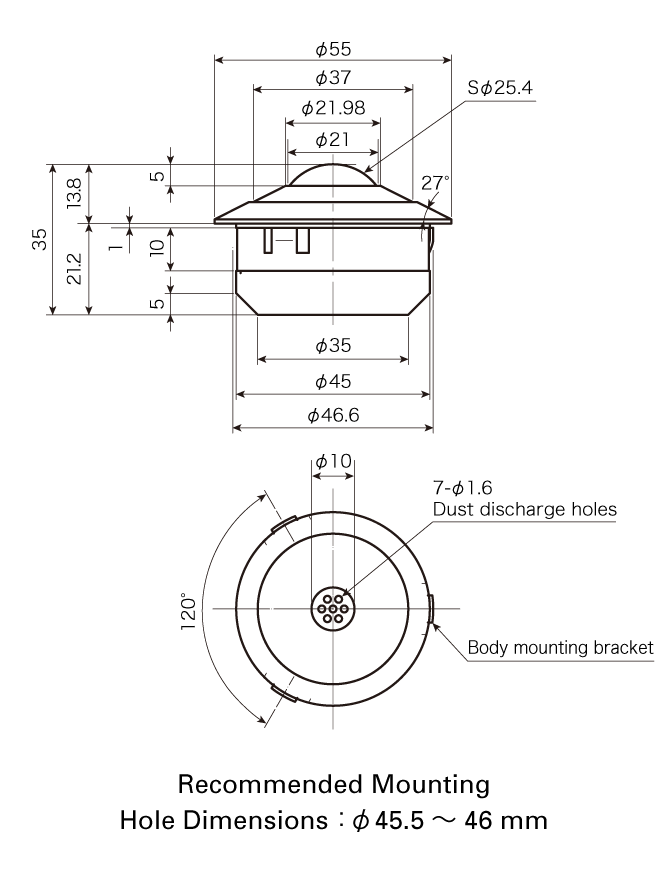

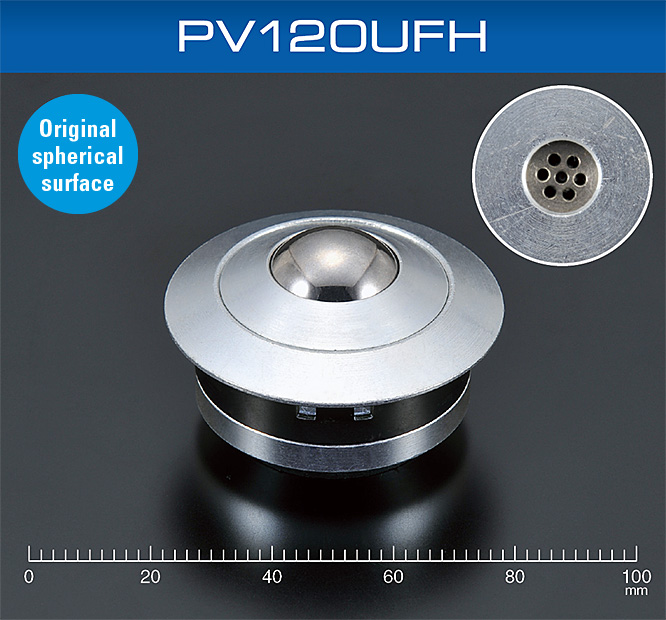

PV120UFH
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD |
|---|---|---|---|---|---|---|---|---|---|
| PV120H | 1,960N (200kgf) | 1,176N (120kgf) | 230g | Upward | STEEL | STEEL | SCM415 | SS·SUM | |
| PV120UFH | 1,960N (200kgf) | 1,176N (120kgf) | 320g | Upward | SUJ2 | SUJ2 | SCM415 | SUM | |
Planeveyor <With dust discharge holes> Cutting bolt type
PV-BHseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
Bolt type (Upward) PV-BH series
Removing ejected dust (Hole drilling)

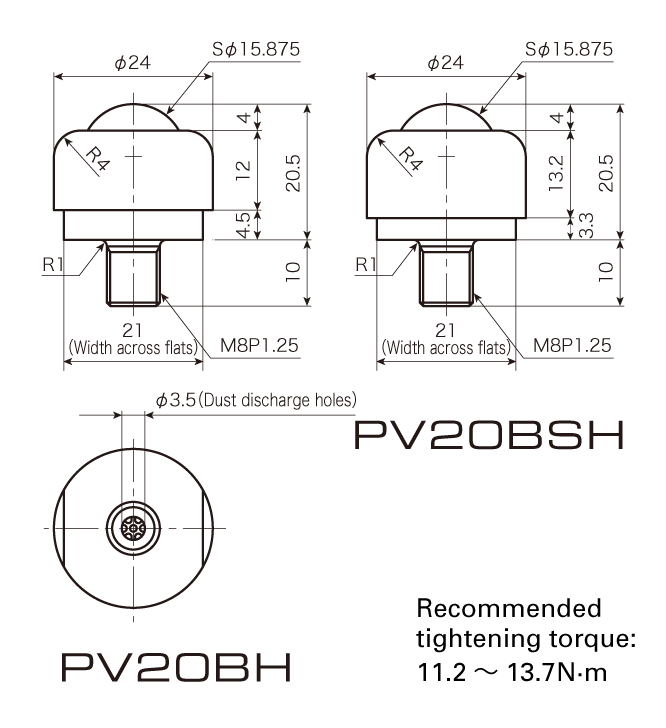

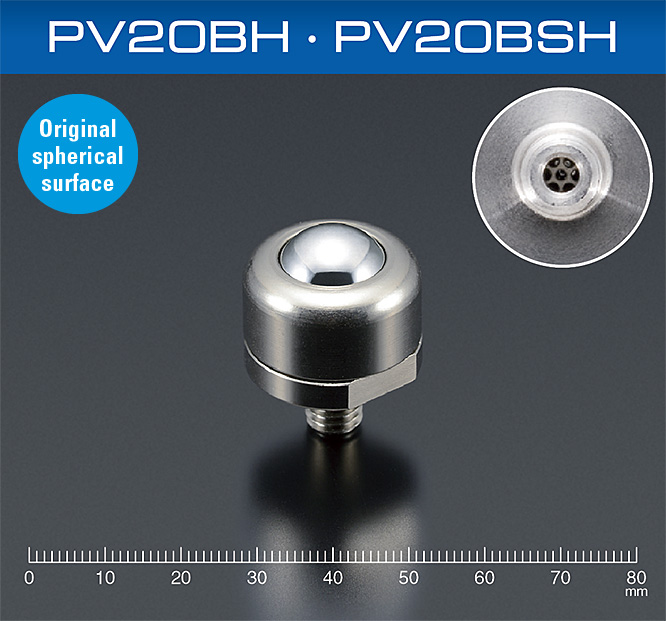

PV20BH·PV20BSH
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD |
|---|---|---|---|---|---|---|---|---|---|
| PV20BH | 784N (80kgf) | 196N (20kgf) | 48g | Upward | SUJ2 | SUJ2 | SCM415 | SUM | |
| PV20BSH | 784N (80kgf) | 196N (20kgf) | 47g | Upward | SUS440C | SUS440C | SUS440C | SUS303 | |

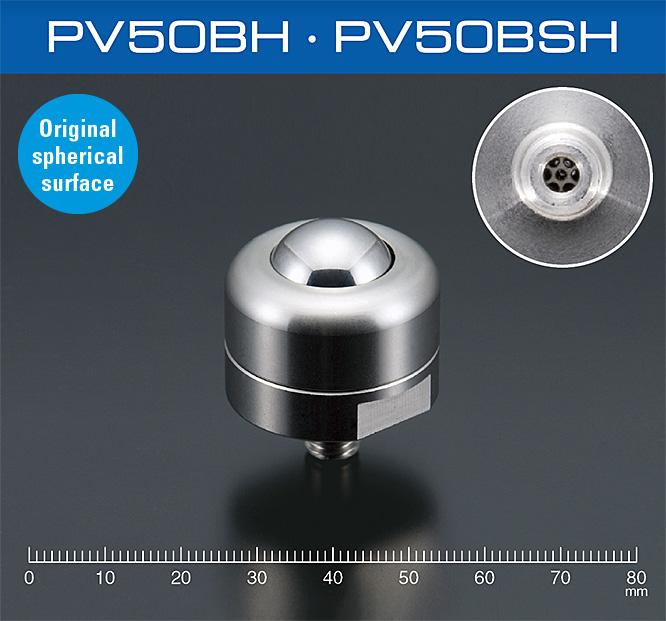

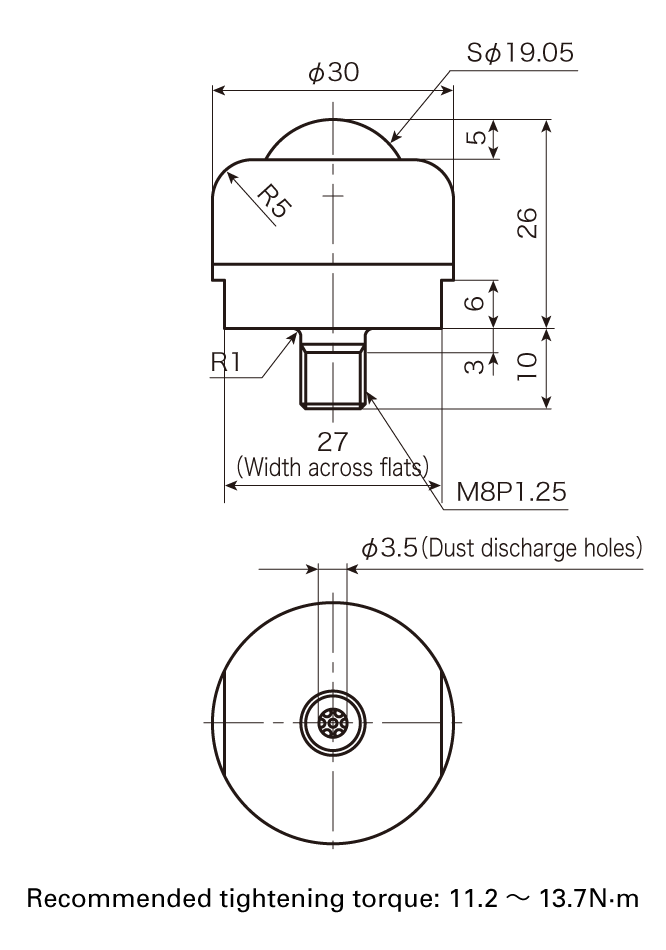

PV50BH·PV50BSH
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV50BH | 1,078N (110kgf) | 490N (50kgf) | 94g | Upward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV50BSH | 1,078N (110kgf) | 490N (50kgf) | 92g | Upward | SUS440C | SUS440C | SUS440C | SUS303 |

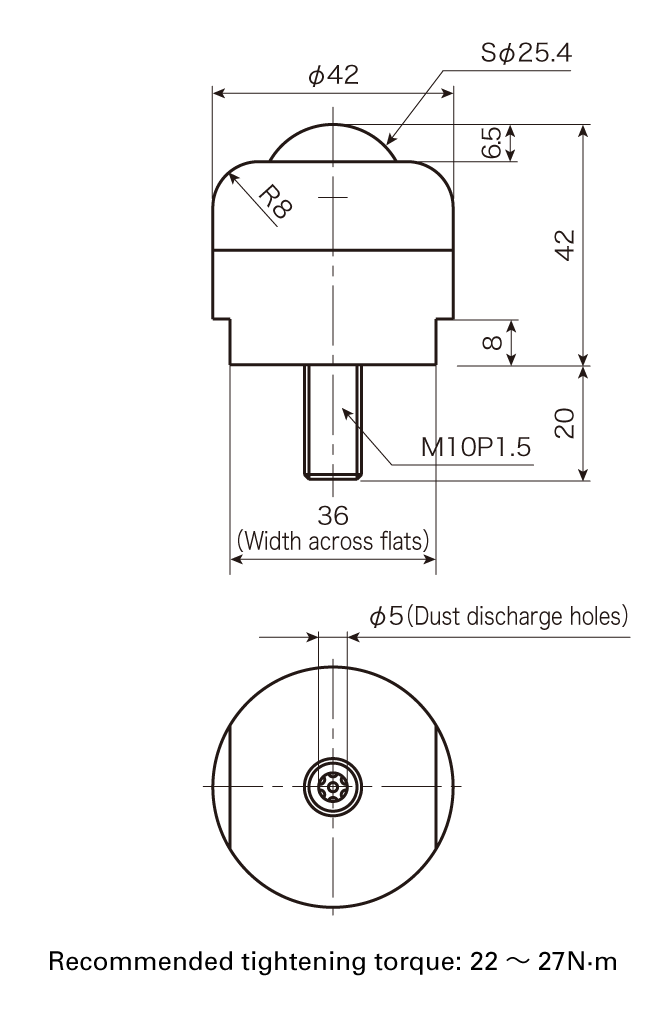

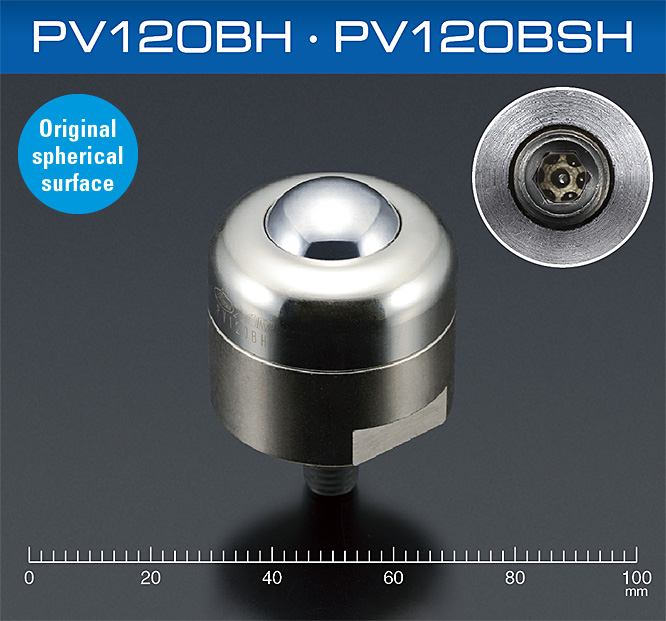

PV120BH·PV120BSH
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV120BH | 1,960N (200kgf) | 1,176N (120kgf) | 340g | Upward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV120BSH | 1,960N (200kgf) | 1,176N (120kgf) | 336g | Upward | SUS440C | SUS440C | SUS440C | SUS303 |
Planeveyor <With Slit processing> Cutting bolt type
PVS-Bseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
Bolt type (Downward) PVS-B series
Removing ejected dust (With Slit processing)

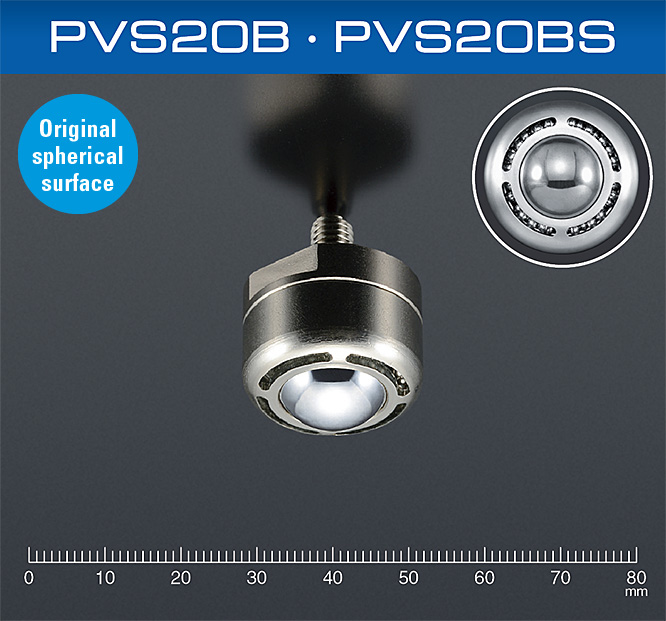

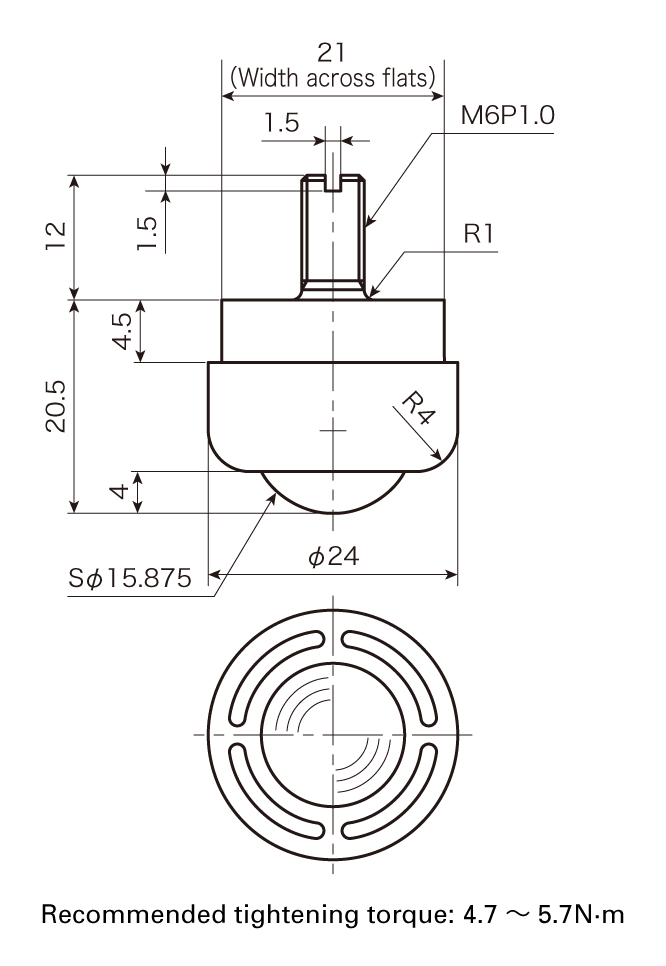

PVS20B·PVS20BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS20B | 343N (35kgf) | 196N (20kgf) | 50g | Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PVS20BS | 343N (35kgf) | 196N (20kgf) | 49g | Downward | SUS440C | SUS440C | SUS440C | SUS303 |

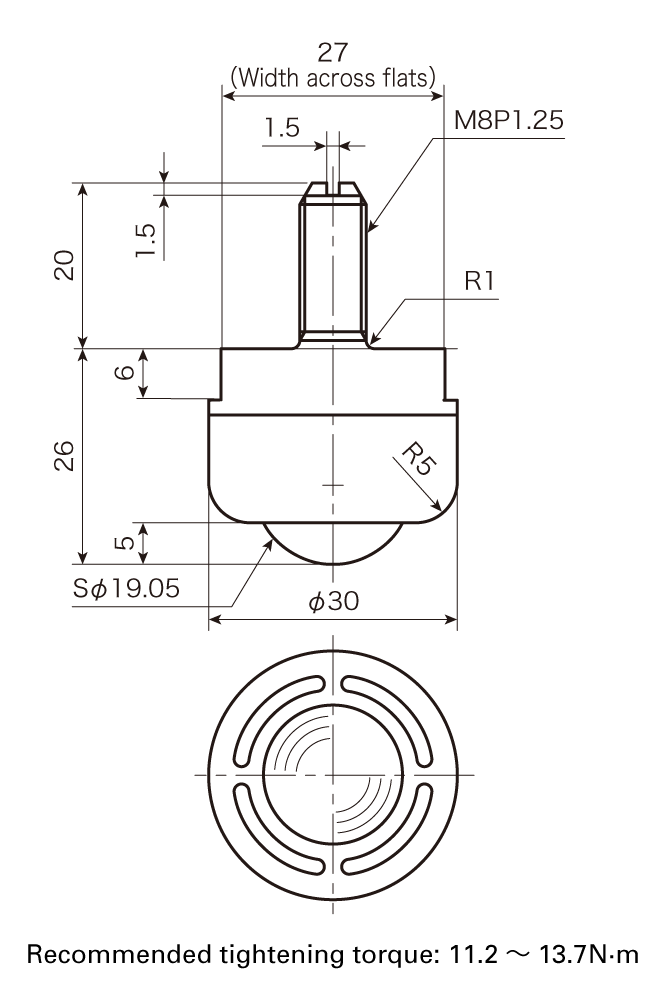

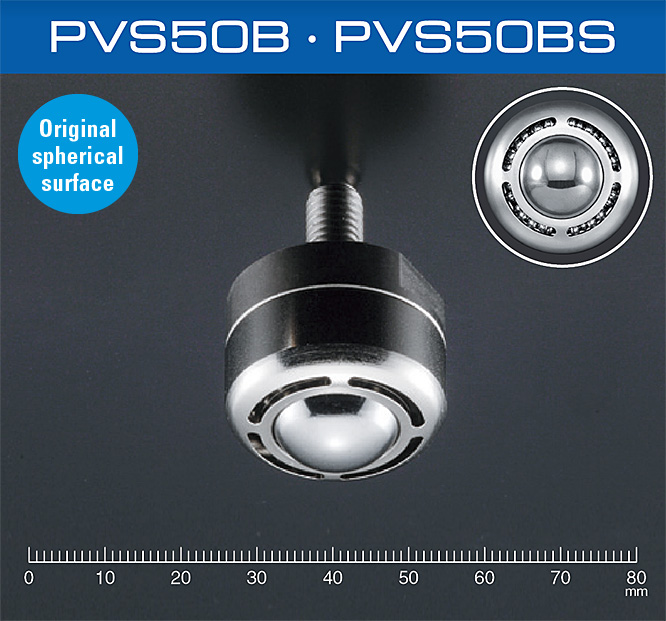

PVS50B·PVS50BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS50B | 588N (60kgf) | 490N (50kgf) | 98g | Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PVS50BS | 588N (60kgf) | 490N (50kgf) | 96g | Downward | SUS440C | SUS440C | SUS440C | SUS303 |

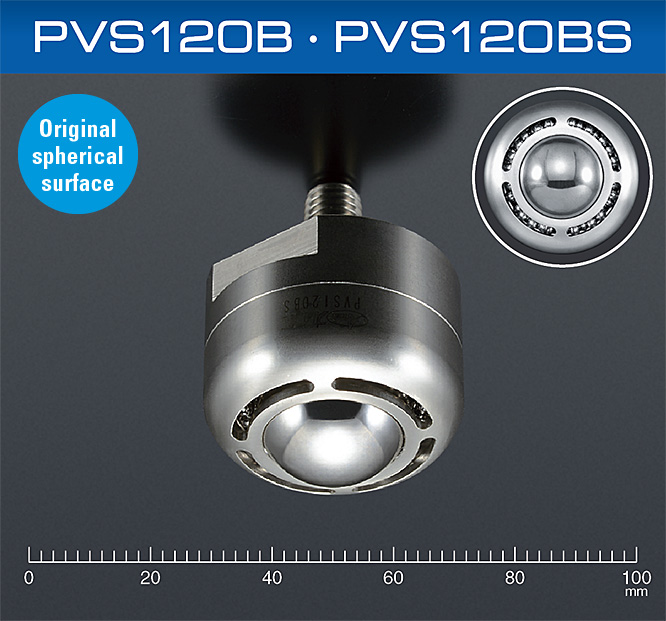

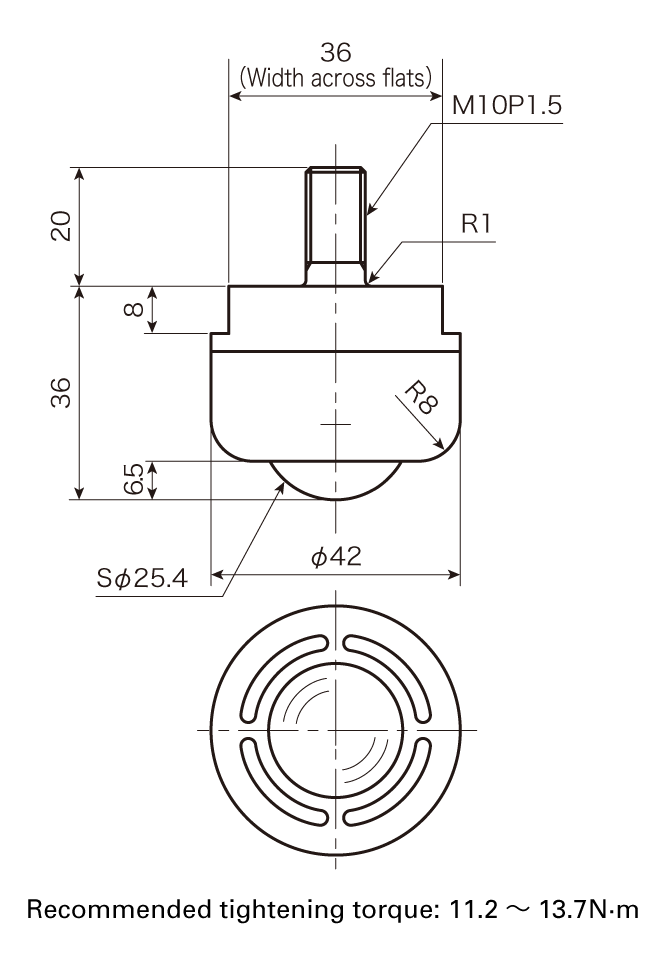

PVS120B·PVS120BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS120B | 1,470N (150kgf) | 1,176N (120kgf) | 282g | Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PVS120BS | 1,470N (150kgf) | 1,176N (120kgf) | 280g | Downward | SUS440C | SUS440C | SUS440C | SUS303 |
Planeveyor <With dust discharge holes> Cutting flange type
PV-FHseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P

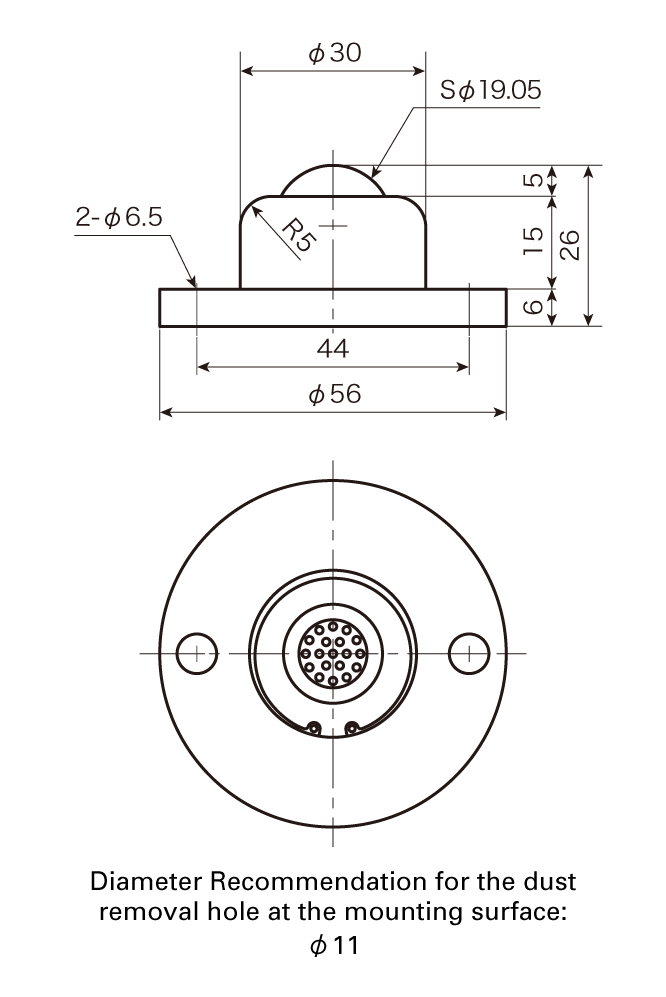

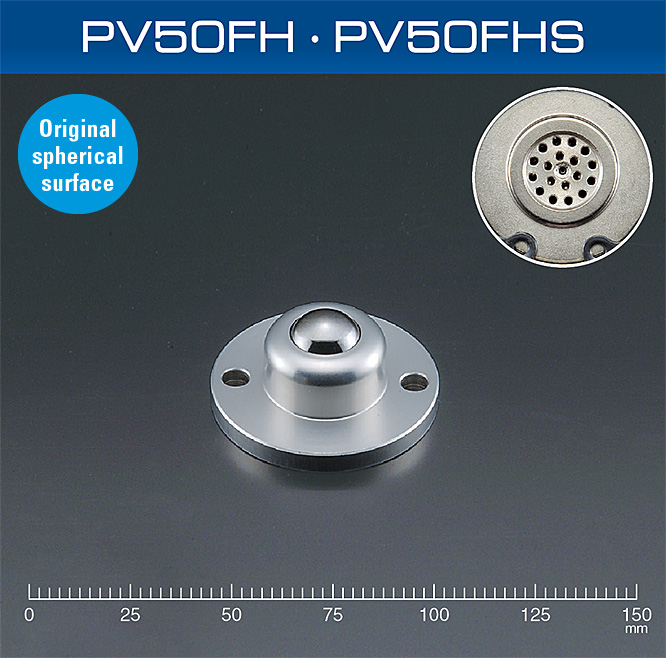

PV50FH·PV50FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV50FH | 1,078N (110kgf) | 490N (50kgf) | 109g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV50FHS | 1,078N (110kgf) | 490N (50kgf) | 108g | Upward | SUS440C | SUS440C | SUS440C | Al |

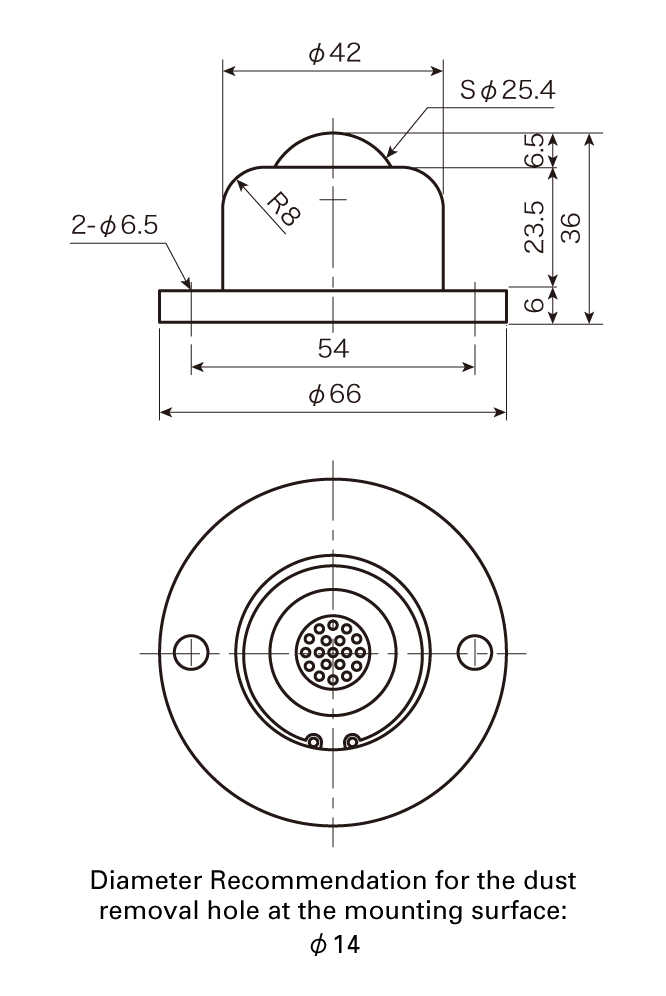

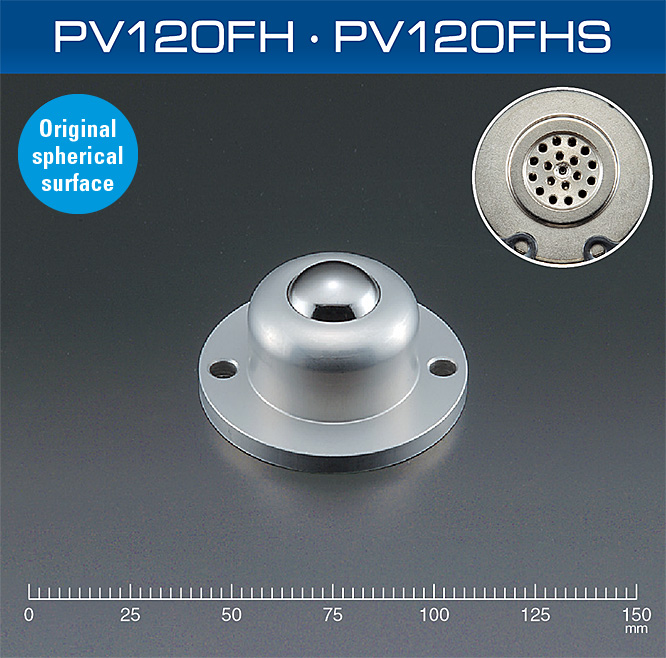

PV120FH·PV120FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV120FH | 1,960N (200kgf) | 1,176N (120kgf) | 256g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV120FHS | 1,960N (200kgf) | 1,176N (120kgf) | 248g | Upward | SUS440C | SUS440C | SUS440C | Al |

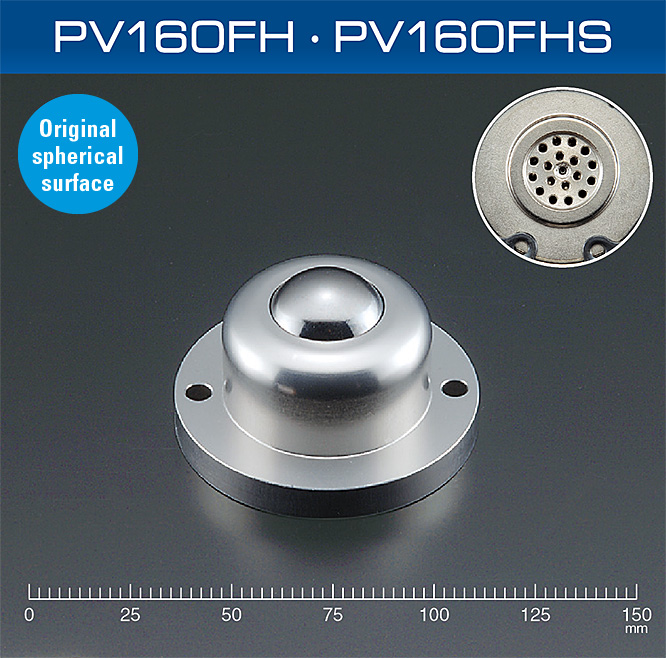

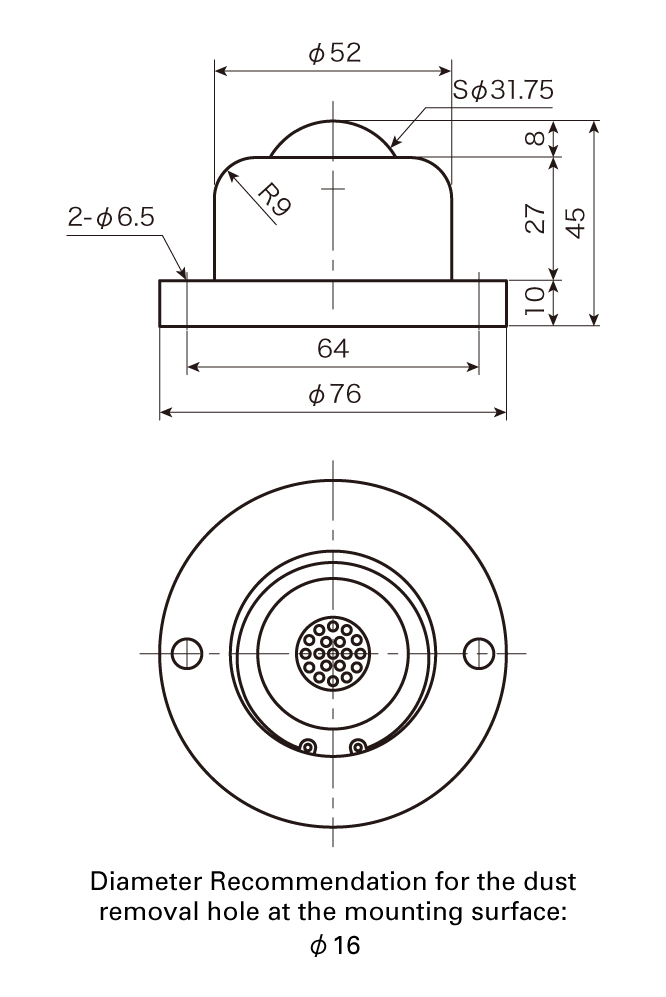

PV160FH·PV160FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV160FH | 2,940N (300kgf) | 1,568N (160kgf) | 494g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV160FHS | 2,940N (300kgf) | 1,568N (160kgf) | 506g | Upward | SUS440C | SUS440C | SUS440C | Al |

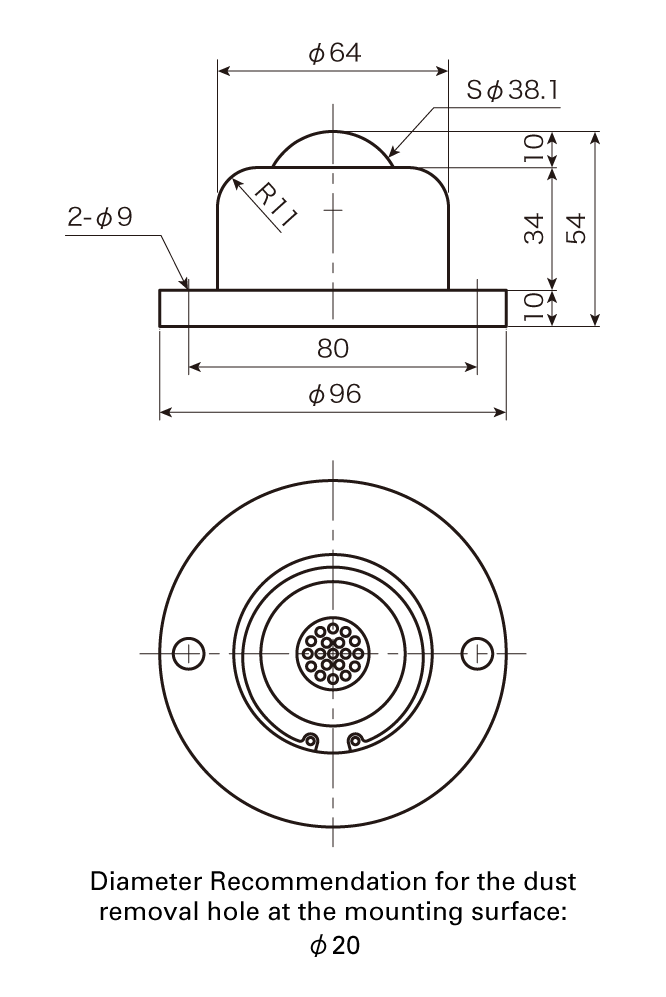

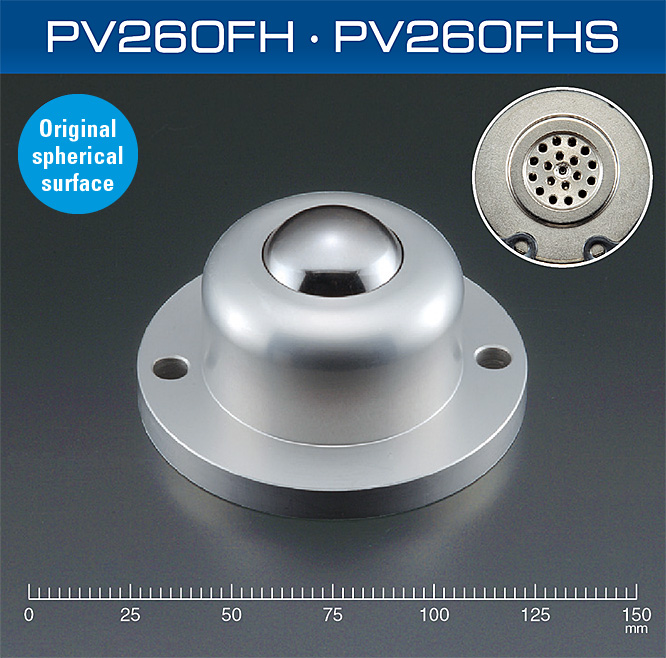

PV260FH·PV260FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV260FH | 3,920N (400kgf) | 2,548N (260kgf) | 847g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV260FHS | 3,920N (400kgf) | 2,548N (260kgf) | 870g | Upward | SUS440C | SUS440C | SUS440C | Al |

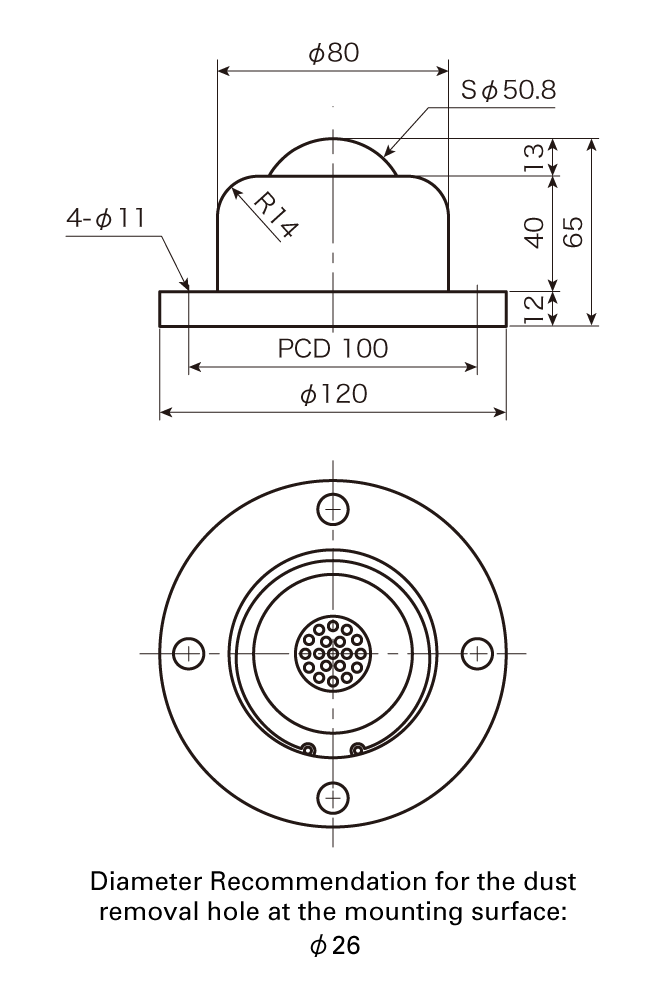

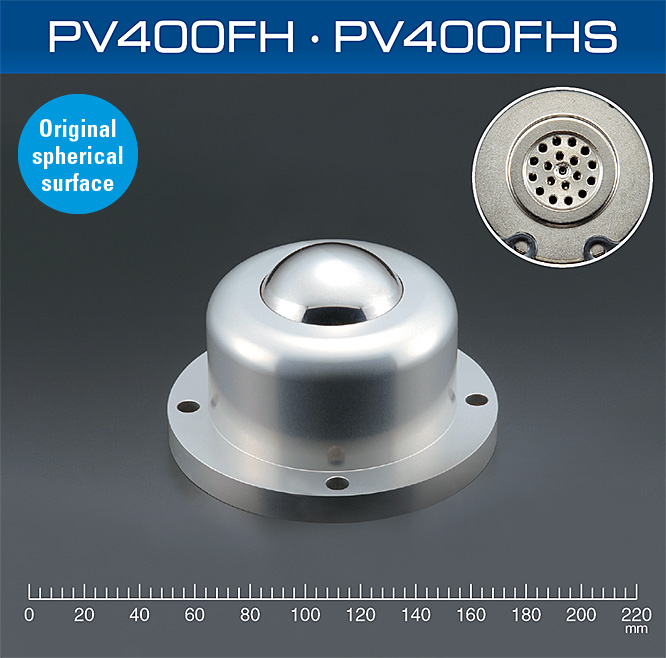

PV400FH·PV400FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV400FH | 7,840N (800kgf) | 3,920N (400kgf) | 2,050g | Upward | SUJ3 | SUJ2 | SCM415 | Al |
| PV400FHS | 7,840N (800kgf) | 3,920N (400kgf) | 2,083g | Upward | SUS440C | SUS440C | SUS440C | Al |

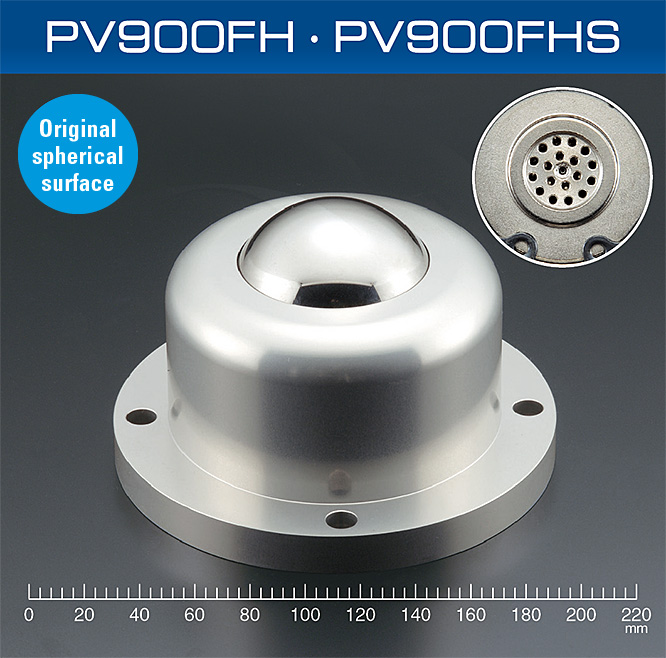

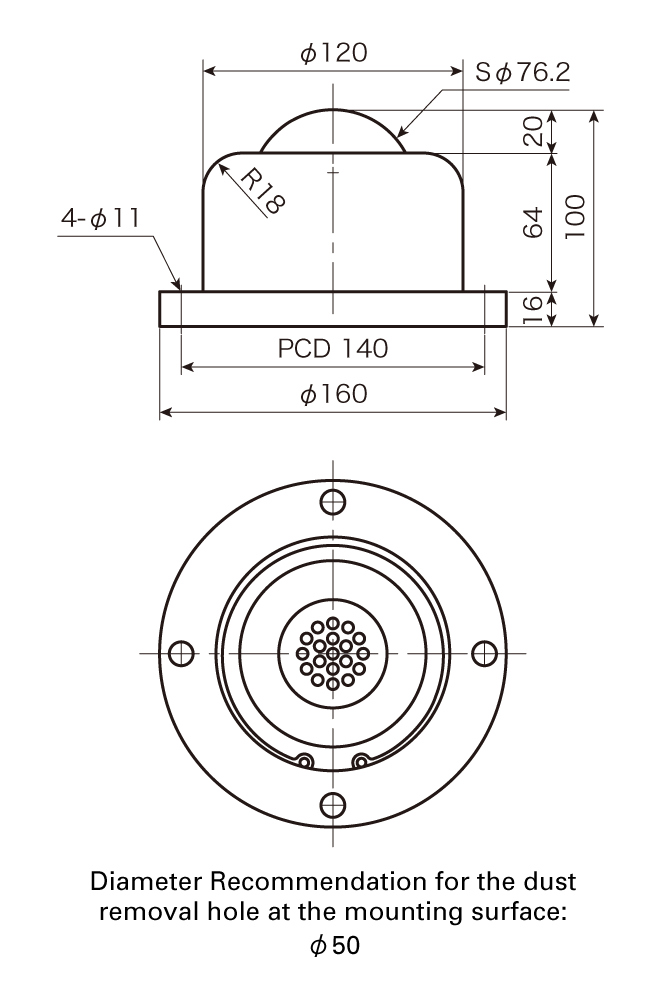

PV900FH·PV900FHS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV900FH | 17,640N (1,800kgf) | 8,820N (900kgf) | 5,400g | Upward | SUJ3 | SUJ2 | SCM415 | Al |
| PV900FHS | 17,640N (1,800kgf) | 8,820N (900kgf) | 5,560g | Upward | SUS440C | SUS440C | SUS440C | Al |
Planeveyor <With Slit processing> Cutting flange type
PVS-Fseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P

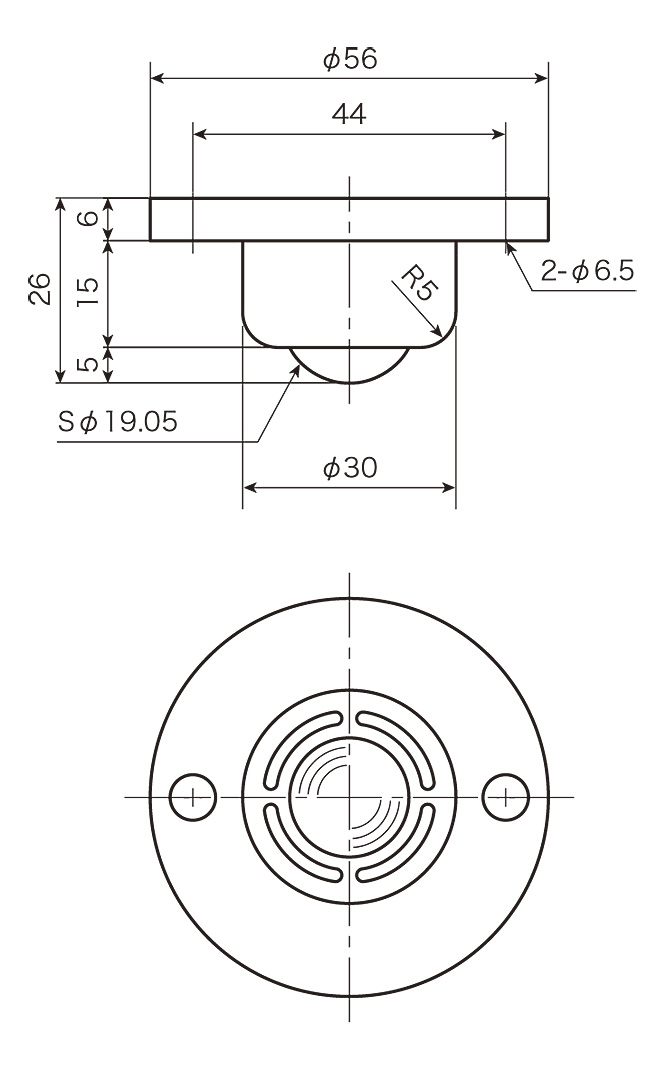

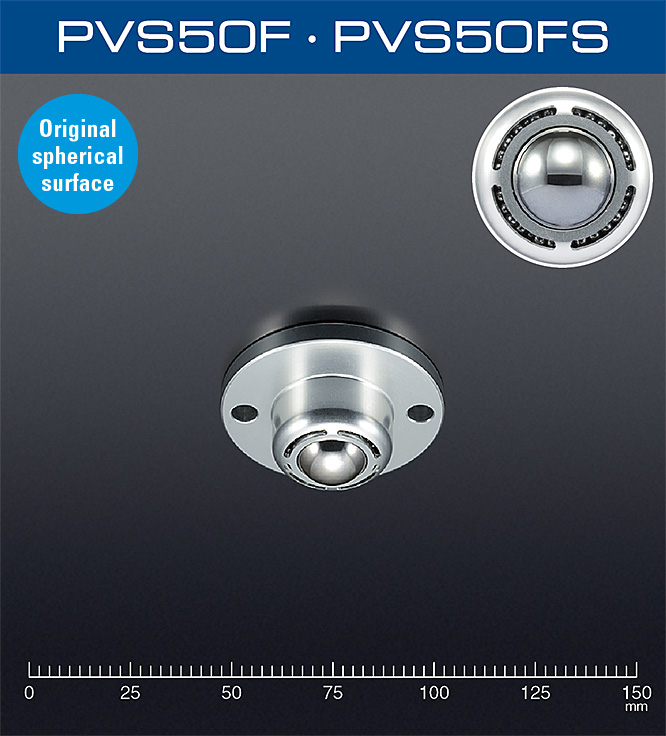

PVS50F·PVS50FS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS50F | 588N (60kgf) | 490N (50kgf) | 111g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PVS50FS | 588N (60kgf) | 490N (50kgf) | 110g | Downward | SUS440C | SUS440C | SUS440C | Al |

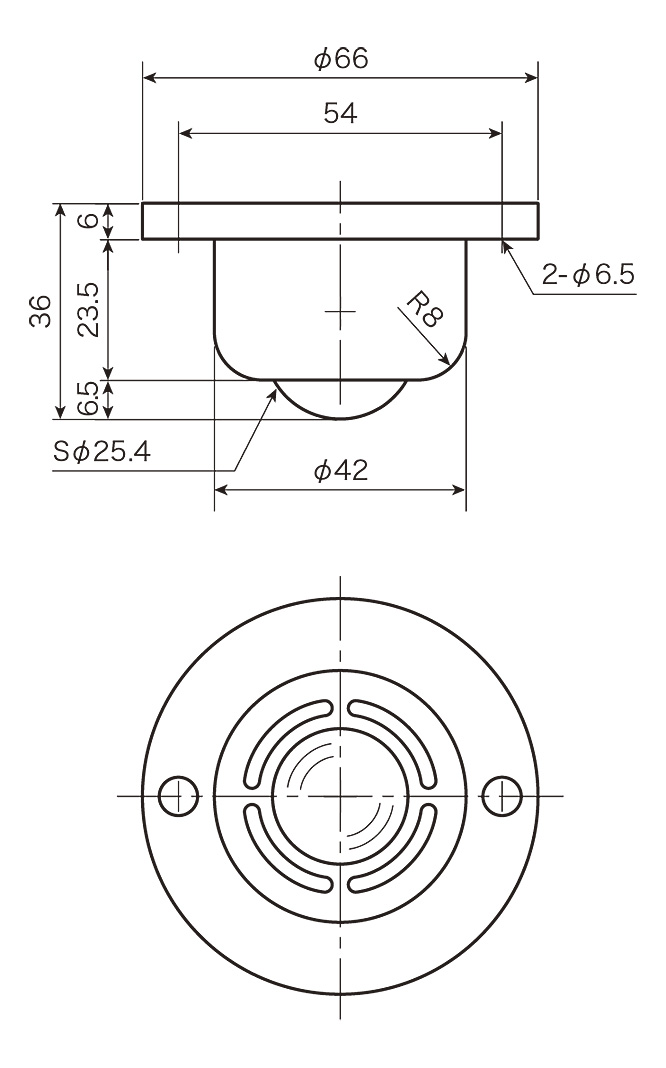

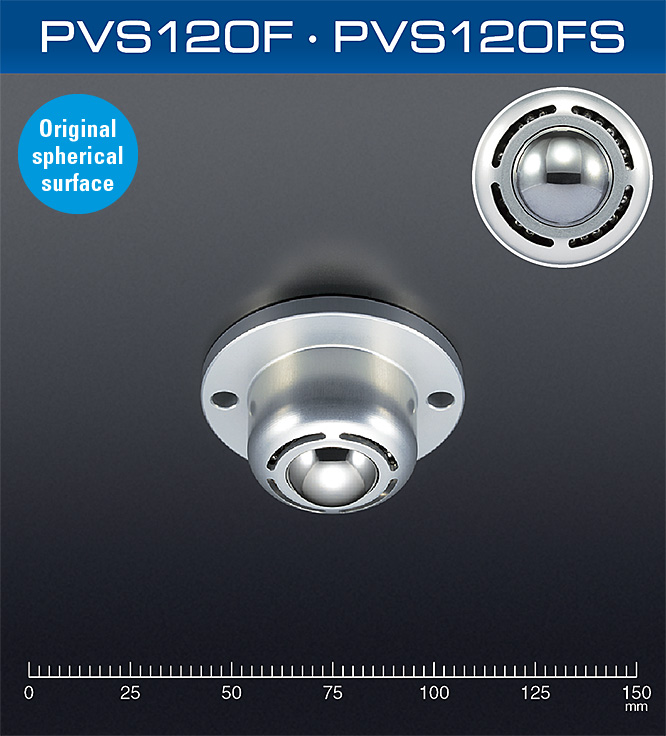

PVS120F·PVS120FS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS120F | 1,470N (150kgf) | 1,176N (120kgf) | 260g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PVS120FS | 1,470N (150kgf) | 1,176N (120kgf) | 252g | Downward | SUS440C | SUS440C | SUS440C | Al |

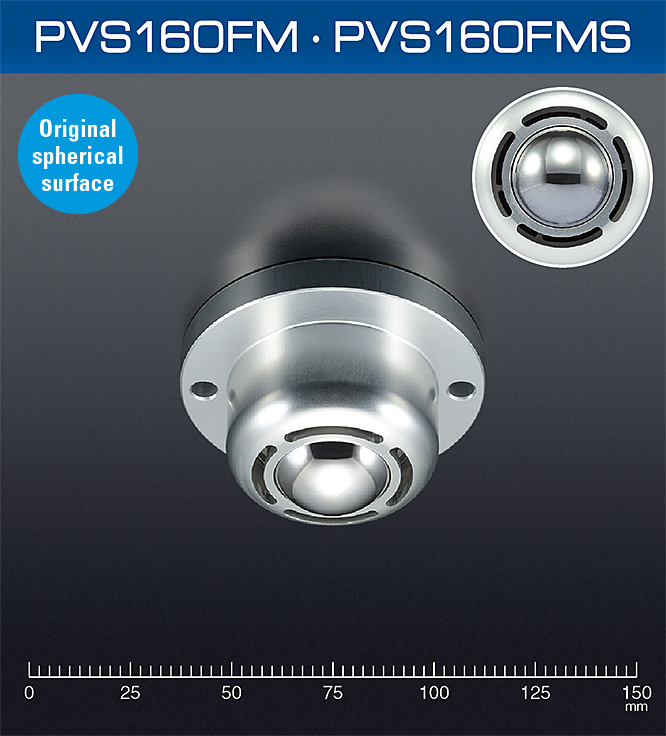

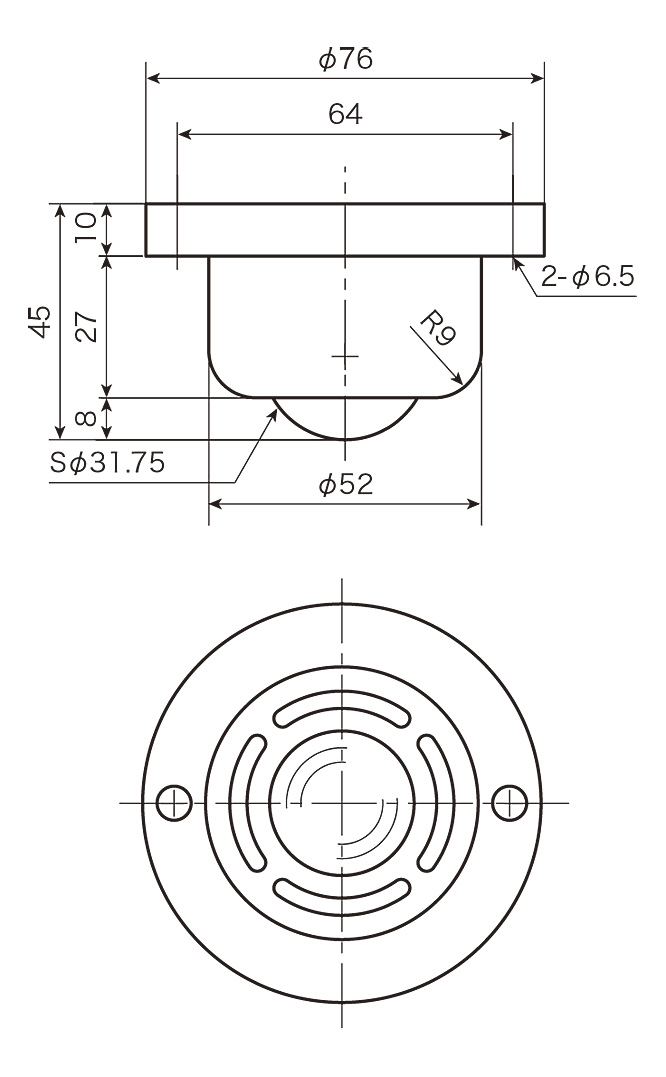

PVS160FM·PVS160FMS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS160FM | 2,940N (300kgf) | 1,568N (160kgf) | 485g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PVS160FMS | 2,940N (300kgf) | 1,568N (160kgf) | 556g | Downward | SUS440C | SUS440C | SUS440C | Al |

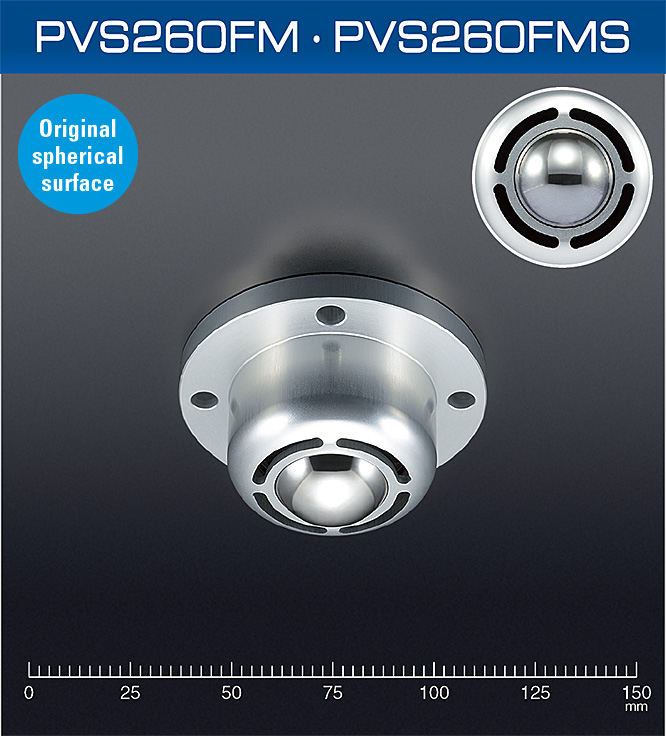

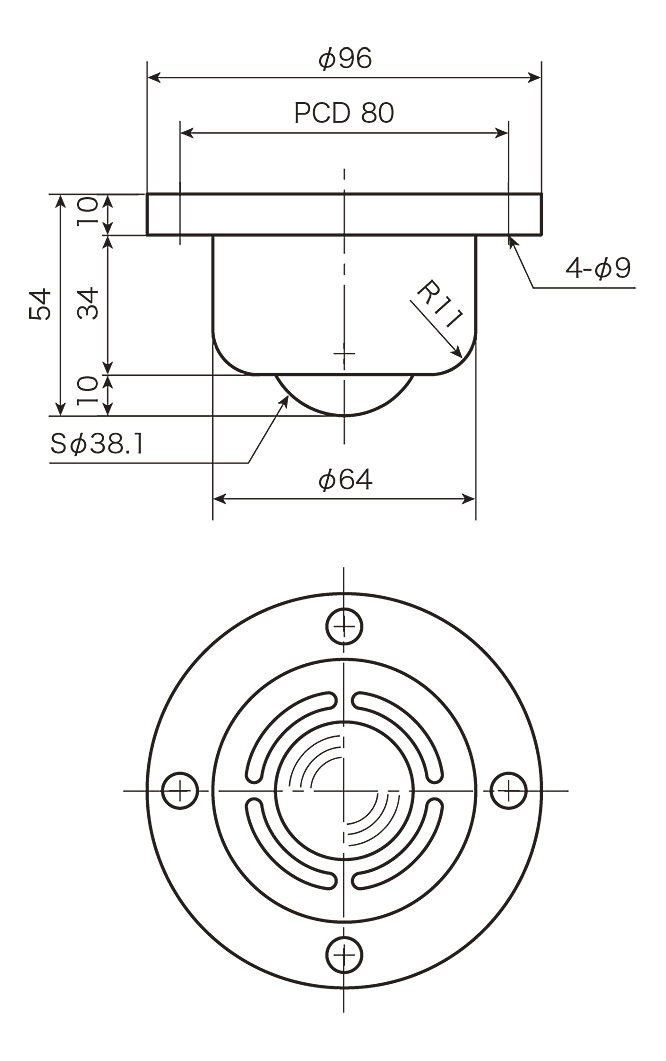

PVS260FM·PVS260FMS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS260FM | 4,900N (500kgf) | 2,548N (260kgf) | 872g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PVS260FMS | 4,900N (500kgf) | 2,548N (260kgf) | 1,002g | Downward | SUS440C | SUS440C | SUS440C | Al |

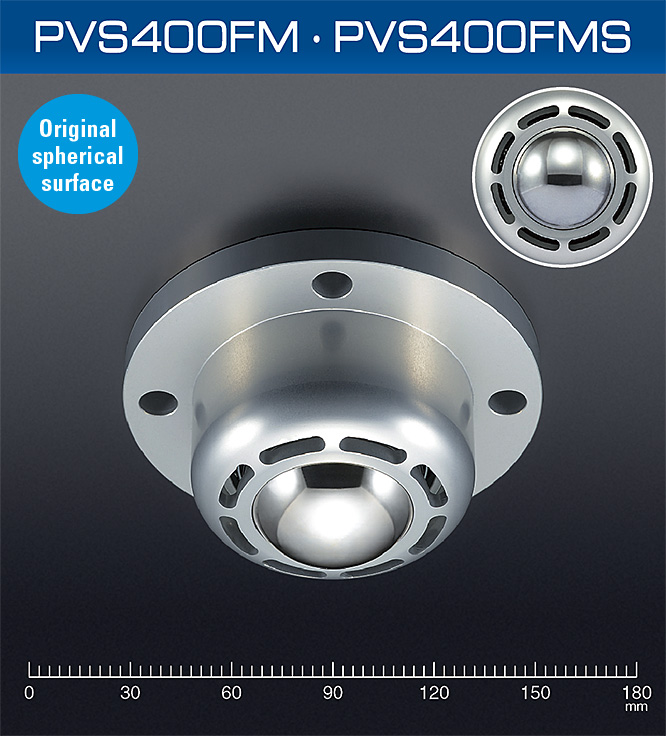

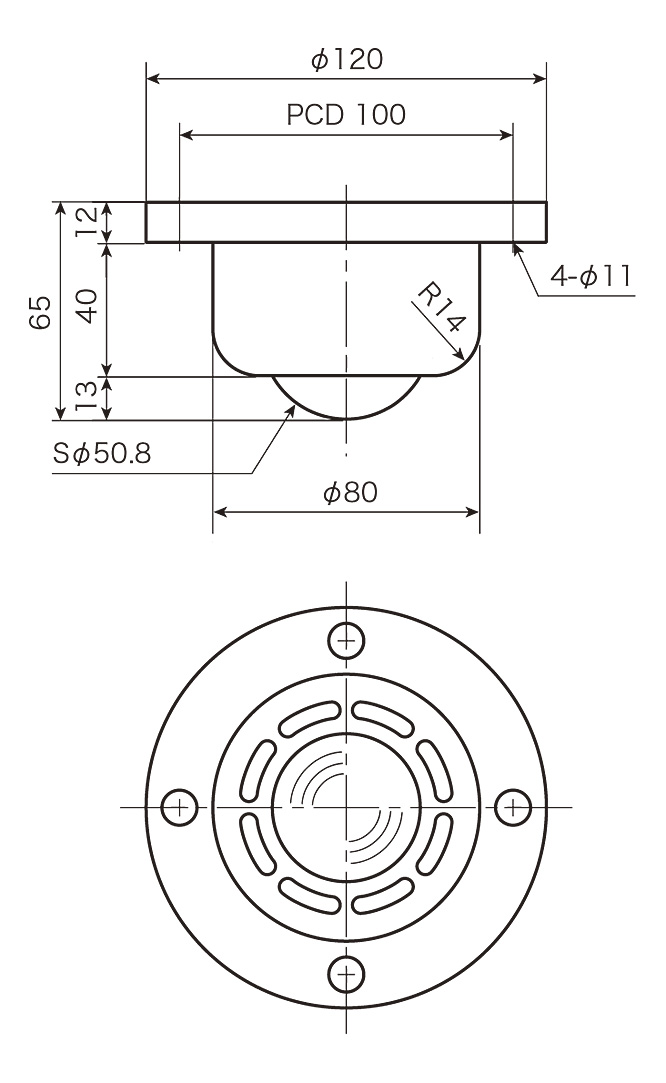

PVS400FM·PVS400FMS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS400FM | 8,820N (900kgf) | 3,920N (400kgf) | 1,599g | Downward | SUJ3 | SUJ2 | SCM415 | Al |
| PVS400FMS | 8,820N (900kgf) | 3,920N (400kgf) | 1,620g | Downward | SUS440C | SUS440C | SUS440C | Al |

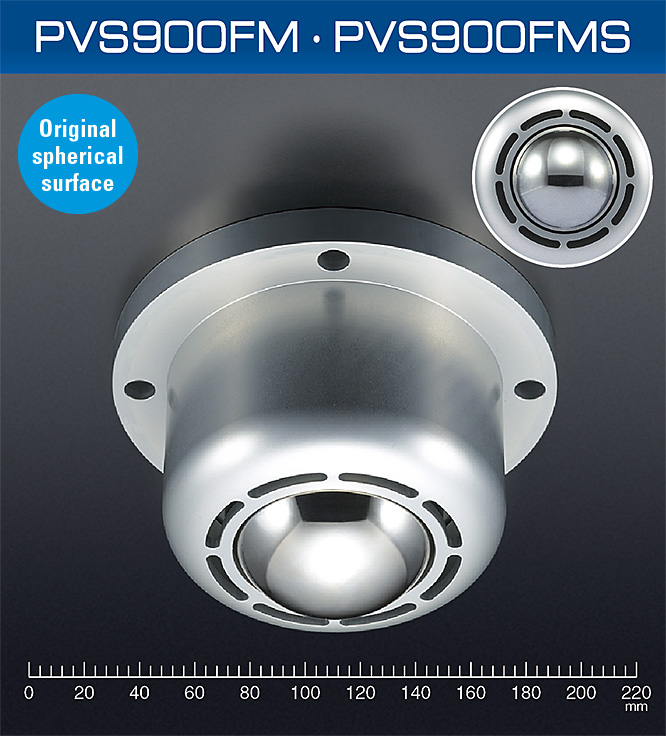

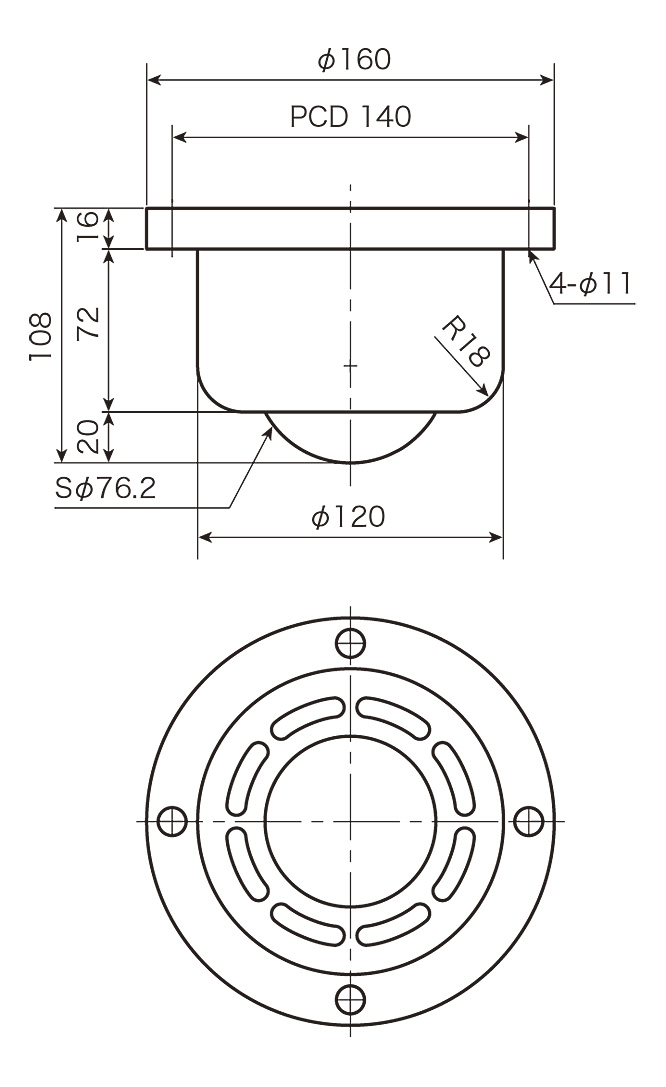

PVS900FM·PVS900FMS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PVS900FM | 18,620N (1,900kgf) | 8,820N (900kgf) | 5,410g | Downward | SUJ3 | SUJ2 | SCM415 | Al |
| PVS900FMS | 18,620N (1,900kgf) | 8,820N (900kgf) | 5,660g | Downward | SUS440C | SUS440C | SUS440C | Al |
