Planeveyor Cutting bolt type
PV-Bseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is a bolt mounting type Planeveyor.
Inside of Planeveyor, there is the main ball of high precision and around it there are many small balls to wrap it. Alll cutting types adopt original spherical surface (PAT.P). It is possible to maintain smooth and stable rotation performance regardless of whether it is for upward or downward even compared with conventional products.

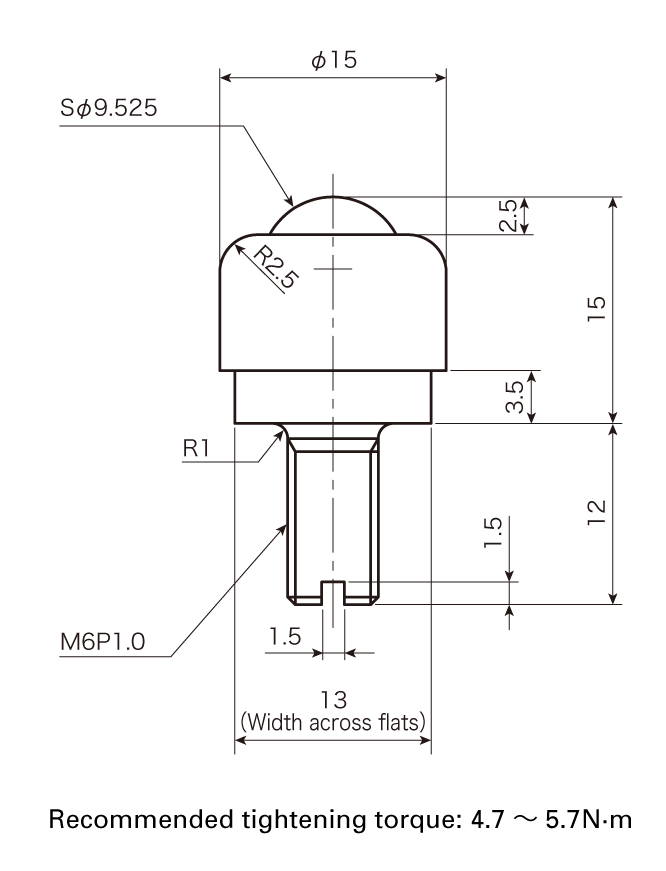

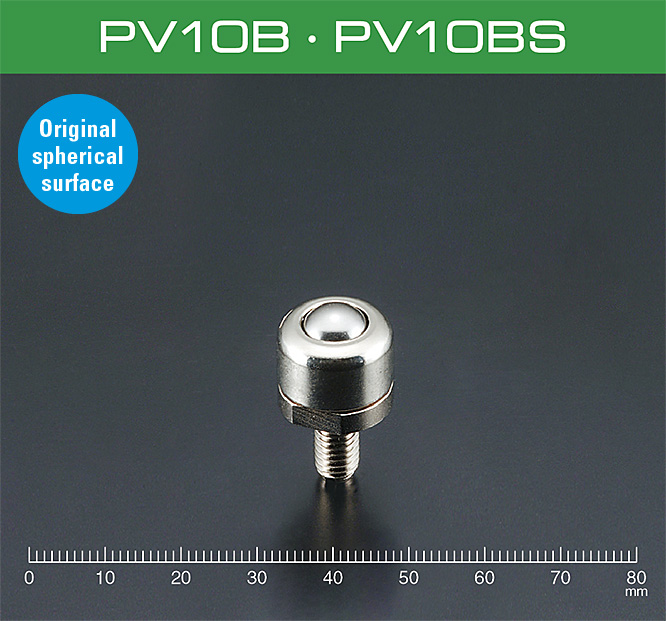

PV10B·PV10BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV10B | 294N (30kgf) |
147N (15kgf) |
98N (10kgf) | 18g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV10BS | 294N (30kgf) |
147N (15kgf) |
98N (10kgf) | 20g | Upward·Downward | SUS440C | SUS440C | SUS440C | SUS303 |

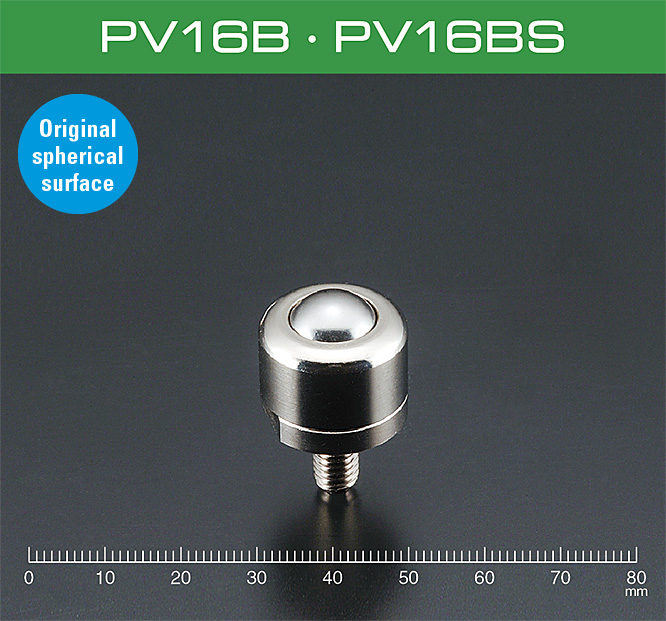

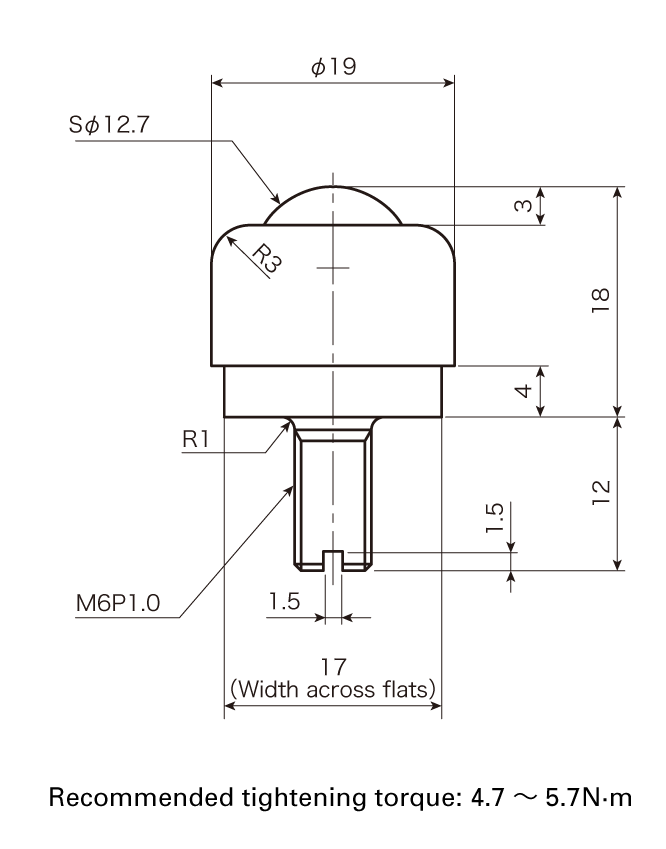

PV16B·PV16BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV16B | 441N (45kgf) |
294N (30kgf) |
157N (16kgf) | 32g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV16BS | 441N (45kgf) |
294N (30kgf) |
157N (16kgf) | 35g | Upward·Downward | SUS440C | SUS440C | SUS440C | SUS303 |

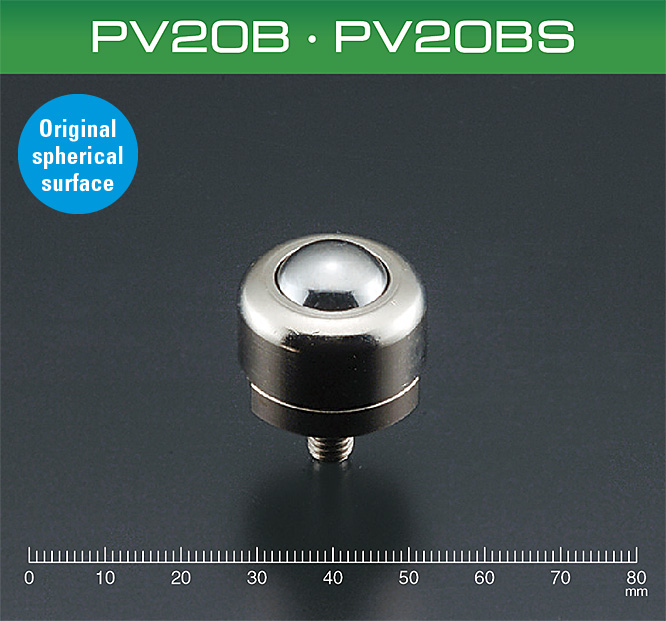

PV20B·PV20BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD | |
|---|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | |||||||||
| PV20B | 784N (80kgf) |
343N (35kgf) |

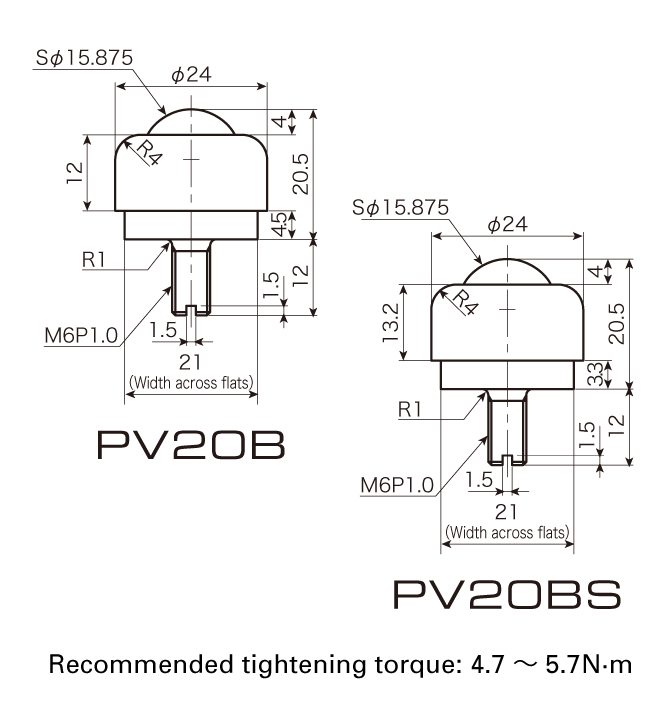

196N (20kgf) | 53g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |  |
| PV20BS | 784N (80kgf) |
343N (35kgf) |
196N (20kgf) | 58g | Upward·Downward | SUS440C | SUS440C | SUS440C | SUS303 | |

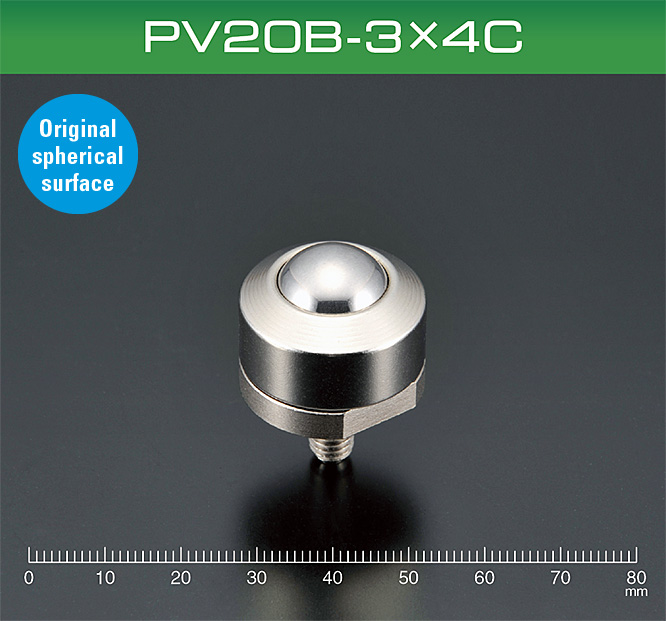

PV20B-3×4C
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV20B-3×4C | 784N (80kgf) |
343N (35kgf) |
196N (20kgf) | 51g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |

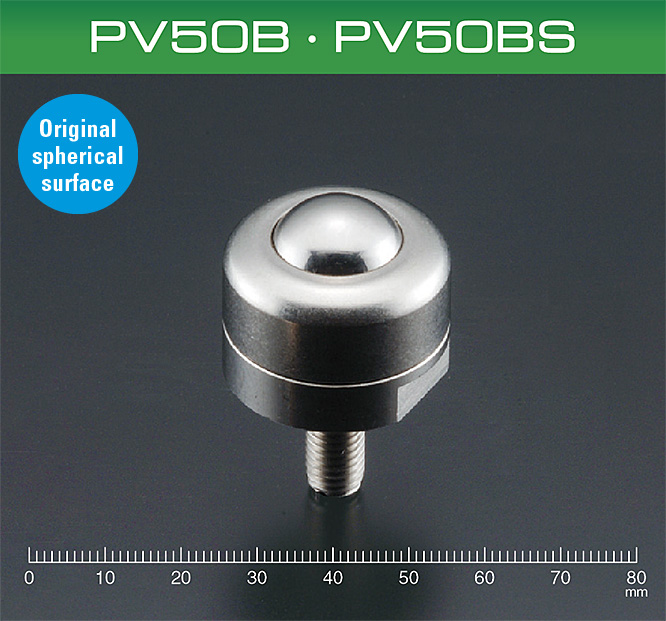

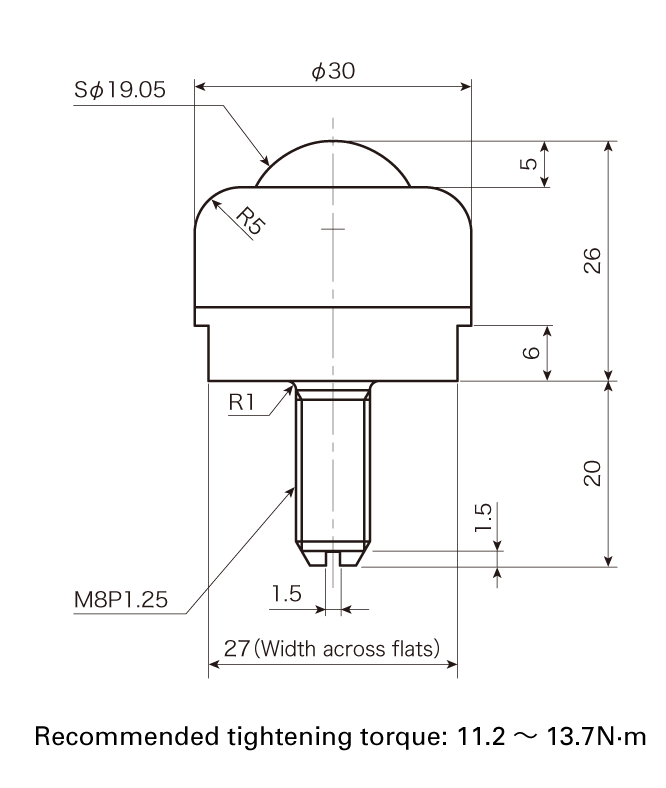

PV50B·PV50BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV50B | 1,078N (110kgf) |
588N (60kgf) |
490N (50kgf) | 109g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV50BS | 1,078N (110kgf) |
588N (60kgf) |
490N (50kgf) | 115g | Upward·Downward | SUS440C | SUS440C | SUS440C | SUS303 |

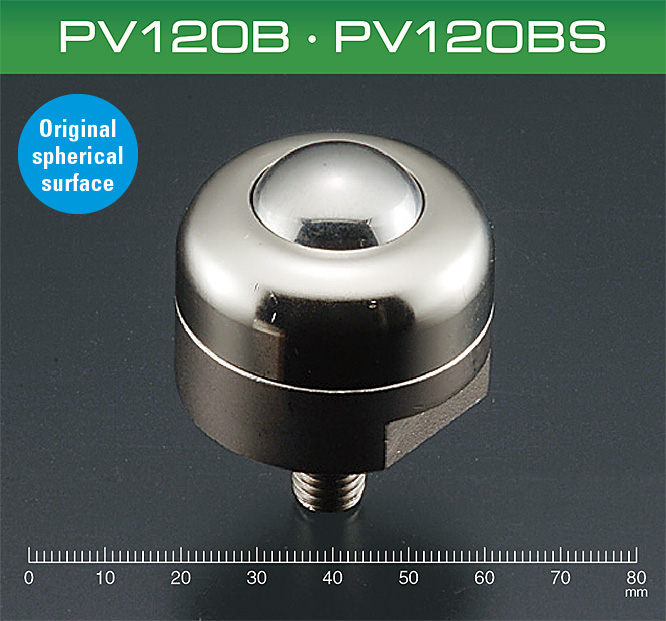

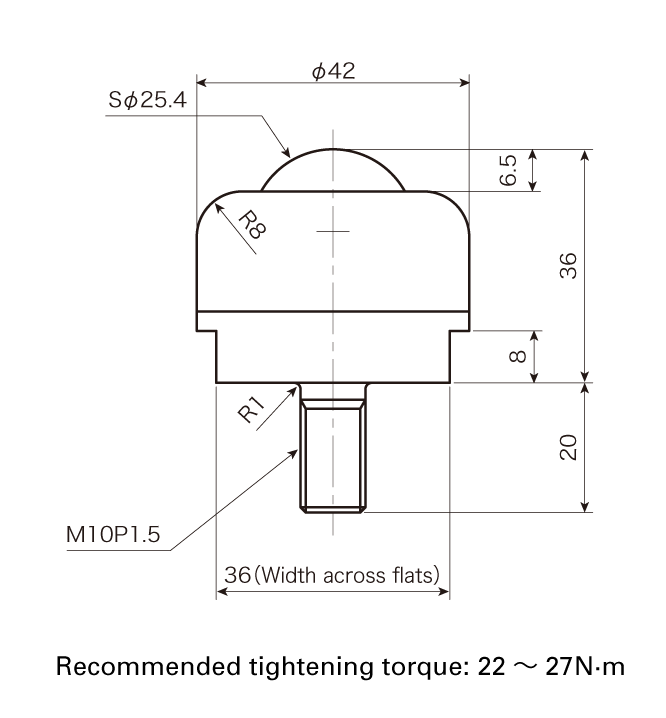

PV120B·PV120BS
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV120B | 1,960N (200kgf) |
1,470N (150kgf) |
1,176N (120kgf) | 290g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | SUM |
| PV120BS | 1,960N (200kgf) |
1,470N (150kgf) |
1,176N (120kgf) | 295g | Upward·Downward | SUS440C | SUS440C | SUS440C | SUS303 |
Planeveyor Cutting flange type
PV-Fseries
- STEEL
- STAINLESS
- RESIN
- RoHS
- PAT
- PAT.P
It is a flange mounting type of Planeveyor.
Compared to bolt-mounted type products, there are plenty of line-ups compatible with heavy-duty work pieces. Planeveyor adopted the original spherical surface (PAT.P) demonstrates its ability as the work weight is heavier.

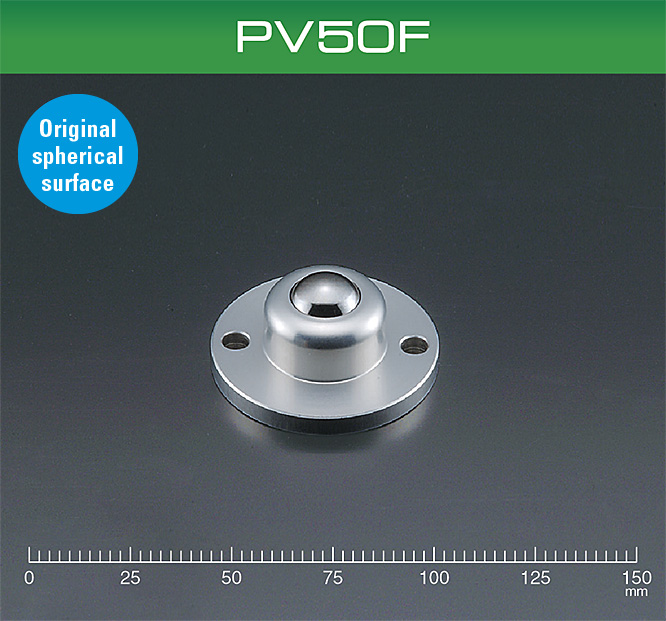

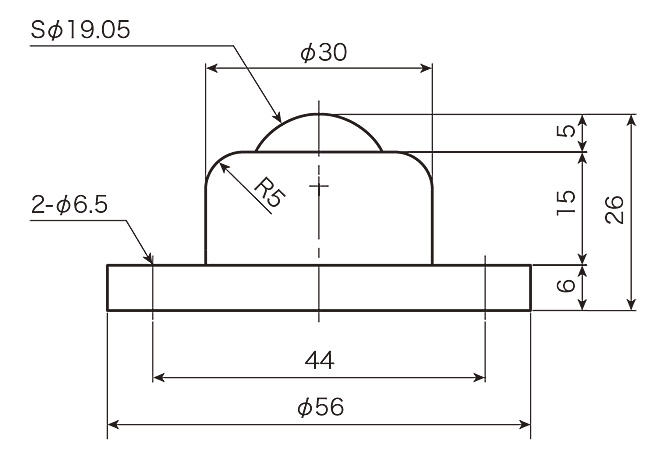

PV50F
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV50F | 1,078N (110kgf) | 588N (60kgf) | 490N (50kgf) | 111g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PV50FS | 1,078N (110kgf) | 588N (60kgf) | 490N (50kgf) | 110g | Upward·Downward | SUS440C | SUS440C | SUS440C | Al |
PV120F
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | |
|---|---|---|---|---|---|---|---|---|---|
| Upward | Downward | ||||||||
| PV120F | 1,960N (200kgf) | 1,470N (150kgf) | 1,176N (120kgf) | 262g | Upward·Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PV120FS | 1,960N (200kgf) | 1,470N (150kgf) | 1,176N (120kgf) | 254g | Upward·Downward | SUS440C | SUS440C | SUS440C | Al |

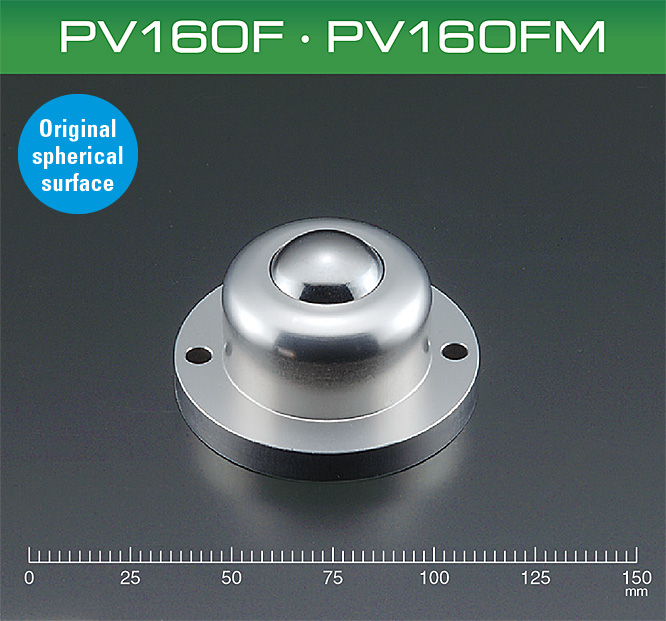

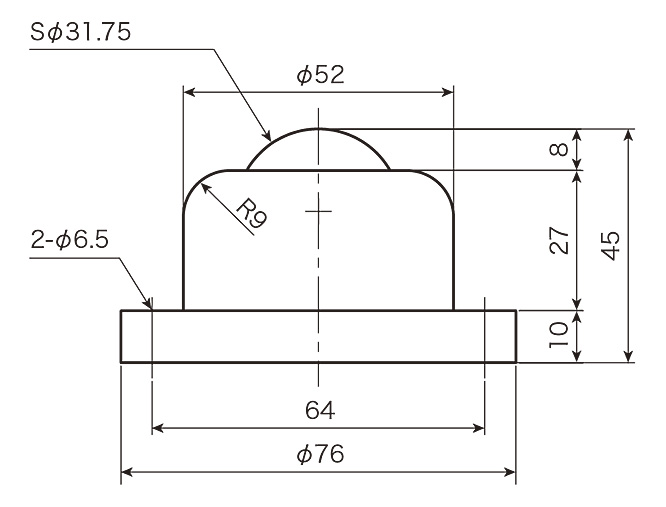

PV160F·PV160FM
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV160F | 2,940N (300kgf) | 1,568N (160kgf) | 486g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV160FS | 2,940N (300kgf) | 1,568N (160kgf) | 498g | Upward | SUS440C | SUS440C | SUS440C | Al |
| PV160FM | 2,940N (300kgf) | 1,568N (160kgf) | 442g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PV160FMS | 2,940N (300kgf) | 1,568N (160kgf) | 513g | Downward | SUS440C | SUS440C | SUS440C | Al |

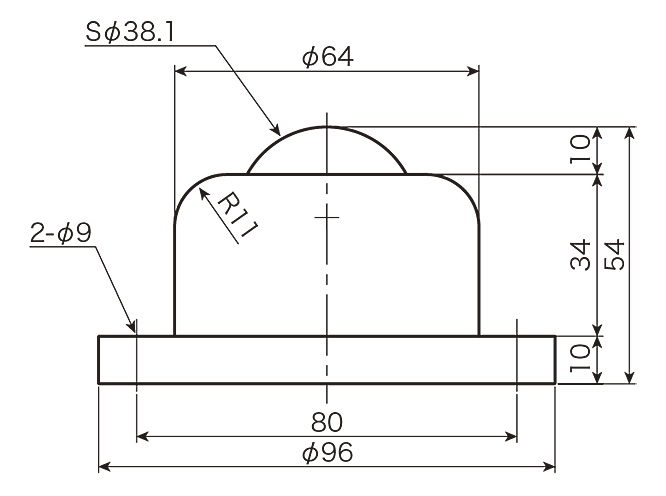

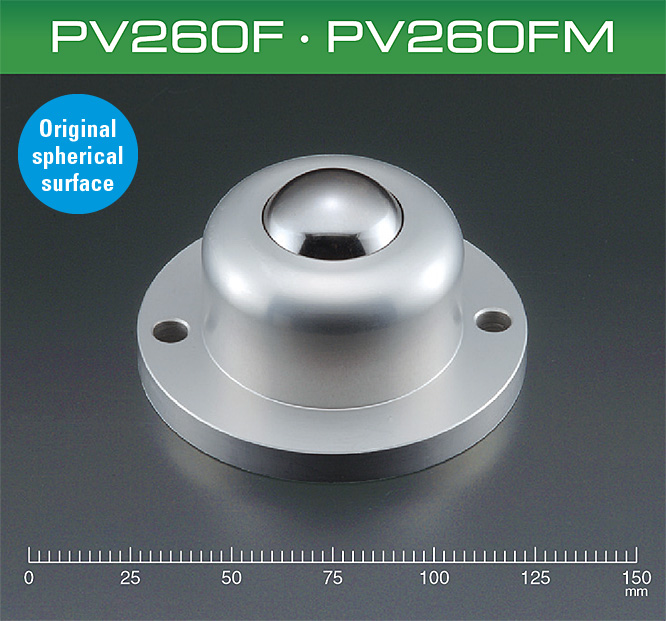

PV260F·PV260FM
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV260F | 3,920N (400kgf) | 2,548N (260kgf) | 865g | Upward | SUJ2 | SUJ2 | SCM415 | Al |
| PV260FS | 3,920N (400kgf) | 2,548N (260kgf) | 888g | Upward | SUS440C | SUS440C | SUS440C | Al |
| PV260FM | 4,900N (500kgf) | 2,548N (260kgf) | 782g | Downward | SUJ2 | SUJ2 | SCM415 | Al |
| PV260FMS | 4,900N (500kgf) | 2,548N (260kgf) | 912g | Downward | SUS440C | SUS440C | SUS440C | Al |

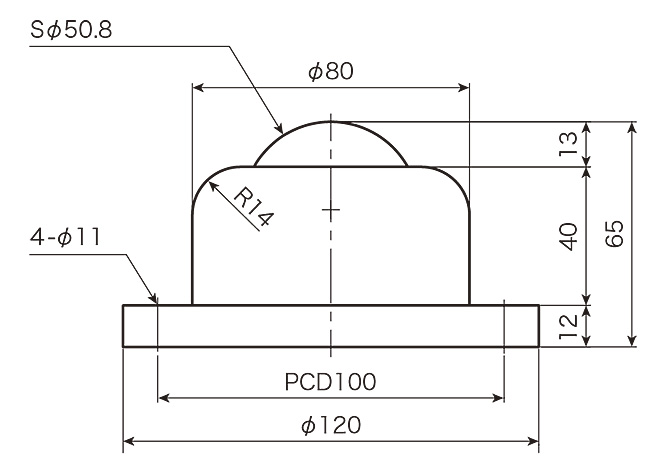

PV400F·PV400FM
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover |
|---|---|---|---|---|---|---|---|---|
| PV400F | 7,840N (800kgf) | 3,920N (400kgf) | 1,650g | Upward | SUJ3 | SUJ2 | SCM415 | Al |
| PV400FS | 7,840N (800kgf) | 3,920N (400kgf) | 1,683g | Upward | SUS440C | SUS440C | SUS440C | Al |
| PV400FM | 8,820N (900kgf) | 3,920N (400kgf) | 2,250g | Downward | SUJ3 | SUJ2 | SCM415 | Al |
| PV400FMS | 8,820N (900kgf) | 3,920N (400kgf) | 2,270g | Downward | SUS440C | SUS440C | SUS440C | Al |

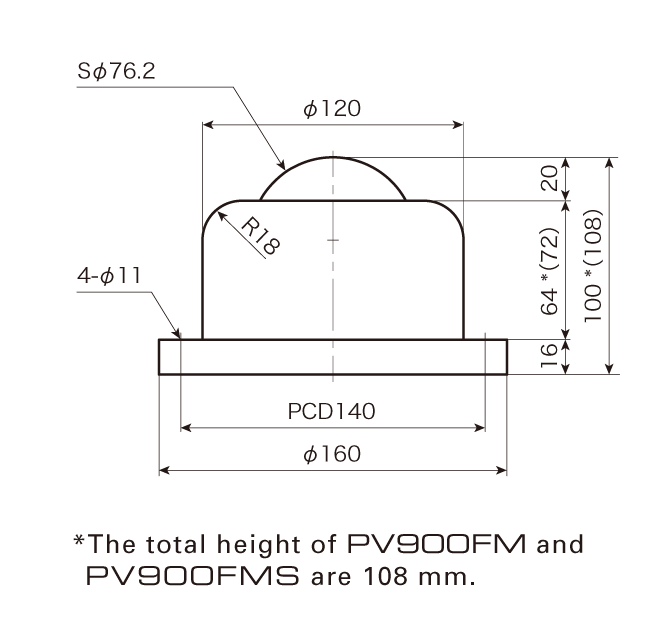

PV900F·PV900FM
| Model | Static Rated Load | Load Rating | Weight | Use Direction | Main Ball | Small Balls | Body | Cover | CAD |
|---|---|---|---|---|---|---|---|---|---|
| PV900F | 17,640N (1,800kgf) | 8,820N (900kgf) | 5,490g | Upward | SUJ3 | SUJ2 | SCM415 | Al | |
| PV900FS | 17,640N (1,800kgf) | 8,820N (900kgf) | 5,650g | Upward | SUS440C | SUS440C | SUS440C | Al | |
| PV900FM | 18,620N (1,900kgf) | 8,820N (900kgf) | 5,550g | Downward | SUJ3 | SUJ2 | SCM415 | Al | |
| PV900FMS | 18,620N (1,900kgf) | 8,820N (900kgf) | 5,800g | Downward | SUS440C | SUS440C | SUS440C | Al |
